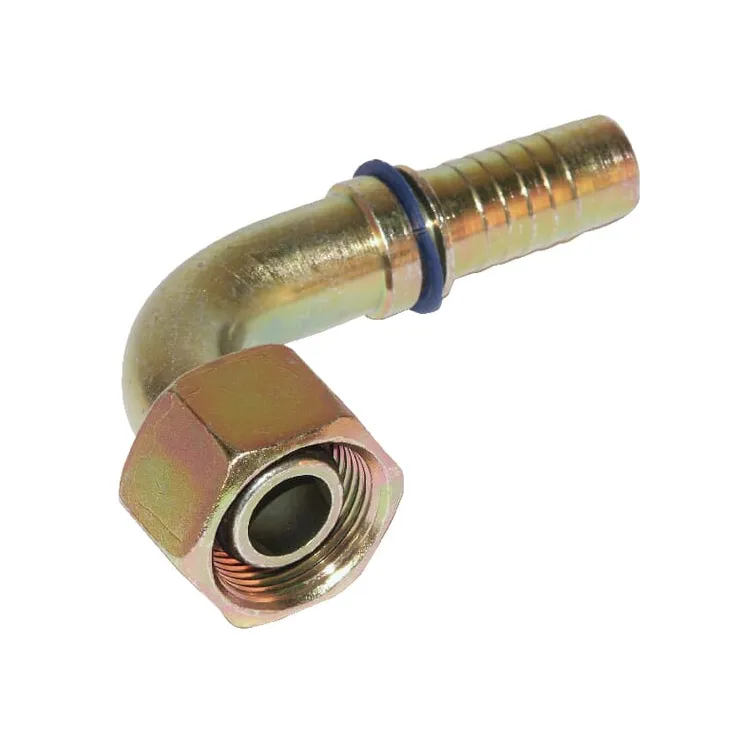

Ievietojiet DN08-M20x1,5-12S-90° PGSO82090 VFR4260

Name: Ievietojiet DN08-M20x1,5-12S-90° PGSO82090 VFR4260
Brand: Alfagomma
SKU: PGSO82090
Price: 5.08 EUR
Availability: InStock

Apmaksas iespējas

5,08 €

AR PVN

4-5 Darba dienas

Ievietojiet DN08-M20x1,5-12S-90° PGSO82090 Alfagomma VFR4260

IR NOLIKTAVĀ

ID: 89468

Apraksts

Part number	PGSO82090
EAN	8716106787111
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors S series
Includes	Insert O-ring
Connection no 1 type	Swivel nut O-ring cone
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	24 °
DConnection 2, centre to end distance	39 mm
Connection 2, diameter	5/16 Inch
Connection 2, diameter	8 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 center to end distance	33.2 mm
Connection no 1 thread pitch	1.50 mm
F1Connection no 1 thread diameter	M20
Connection no 1 thread type	Metric
Connection no 1 type code	DKOS
Connection no 1 type - male/female	Female
CH1Connection no 1 wrench size	24.0 mm
Material	Steel
Original number equivalent	H1221693-052000
Series	12S
Shape	Elbow - 2 connection sides
