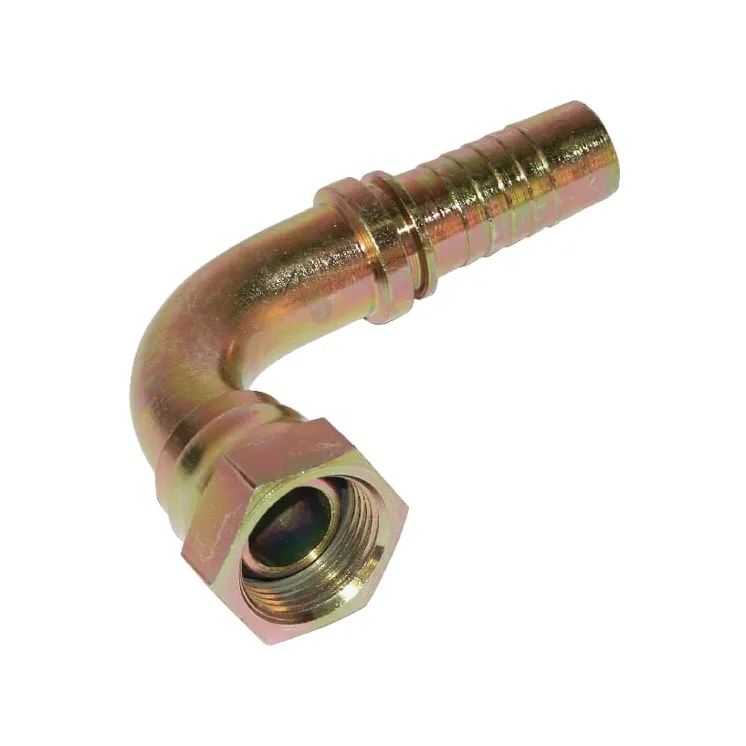

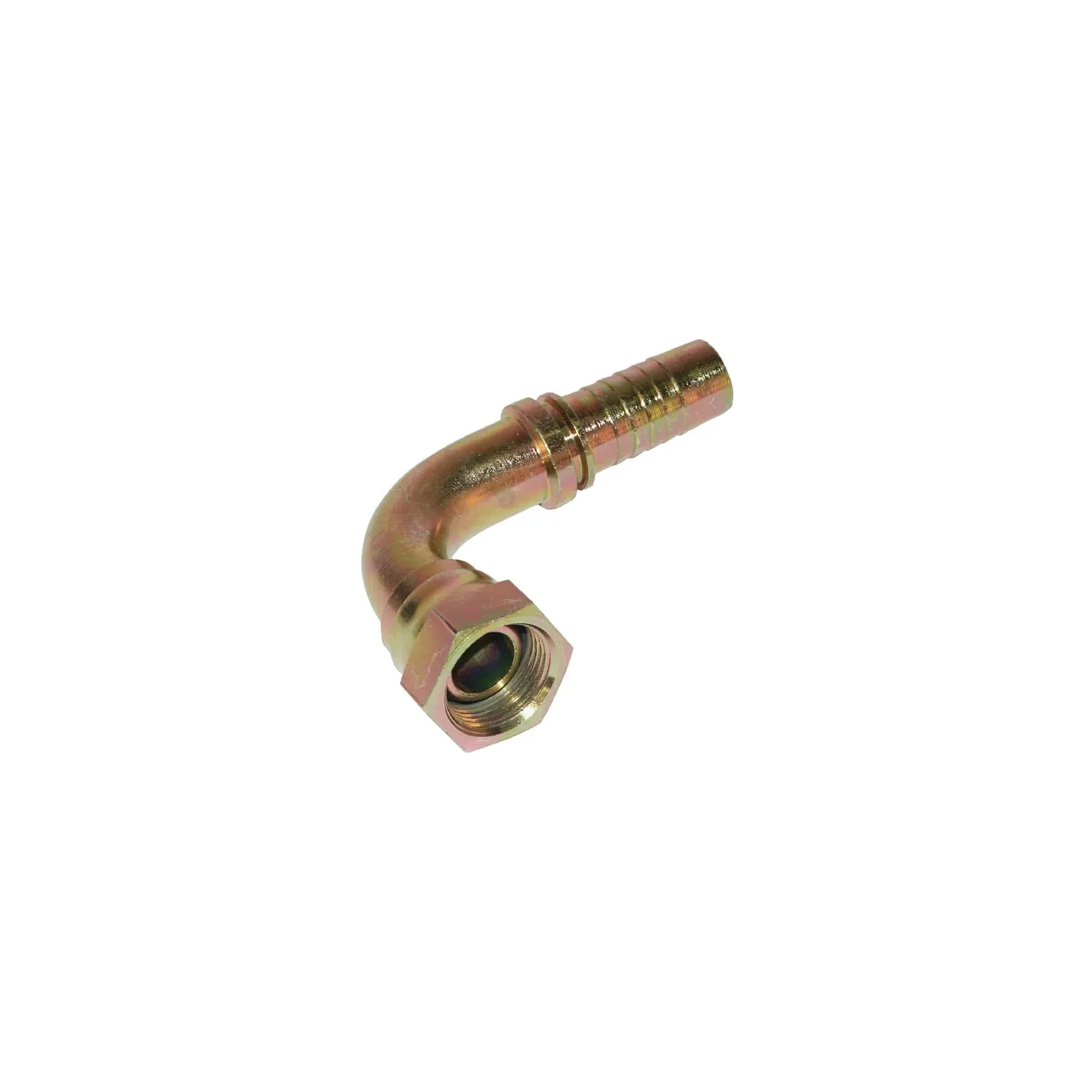

Ievietojiet DN06-3/8 BSP-90º PF6690

Name: Ievietojiet DN06-3/8 BSP-90º PF6690
Brand: Alfagomma
SKU: PF6690
Price: 3.28 EUR
Availability: InStock

Apmaksas iespējas

3,28 €

AR PVN

4-5 Darba dienas

Ievietojiet DN06-3/8 BSP-90º PF6690 Alfagomma

IR NOLIKTAVĀ

ID: 89469

Apraksts

Part number	PF6690
EAN
Unit	Each
Product details	O-ring seal DKOR
Includes	Insert O-ring
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	60 °
Connection 2, diameter	1/4 Inch
Connection 2, diameter	6 mm
Connection 2, length	30.5 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 length	28 mm
Connection no 1 thread diameter	3/8 Inch
Connection no 1 thread type	BSP
Connection no 1 type code	DKOR
Connection no 1 type - male/female	Female
Connection no 1 type	Cone
Connection no 1 wrench size	22.0 mm
ISO standard	228
Material	Steel
Original number equivalent	H1220893-040600
Shape	Elbow - 2 connection sides
