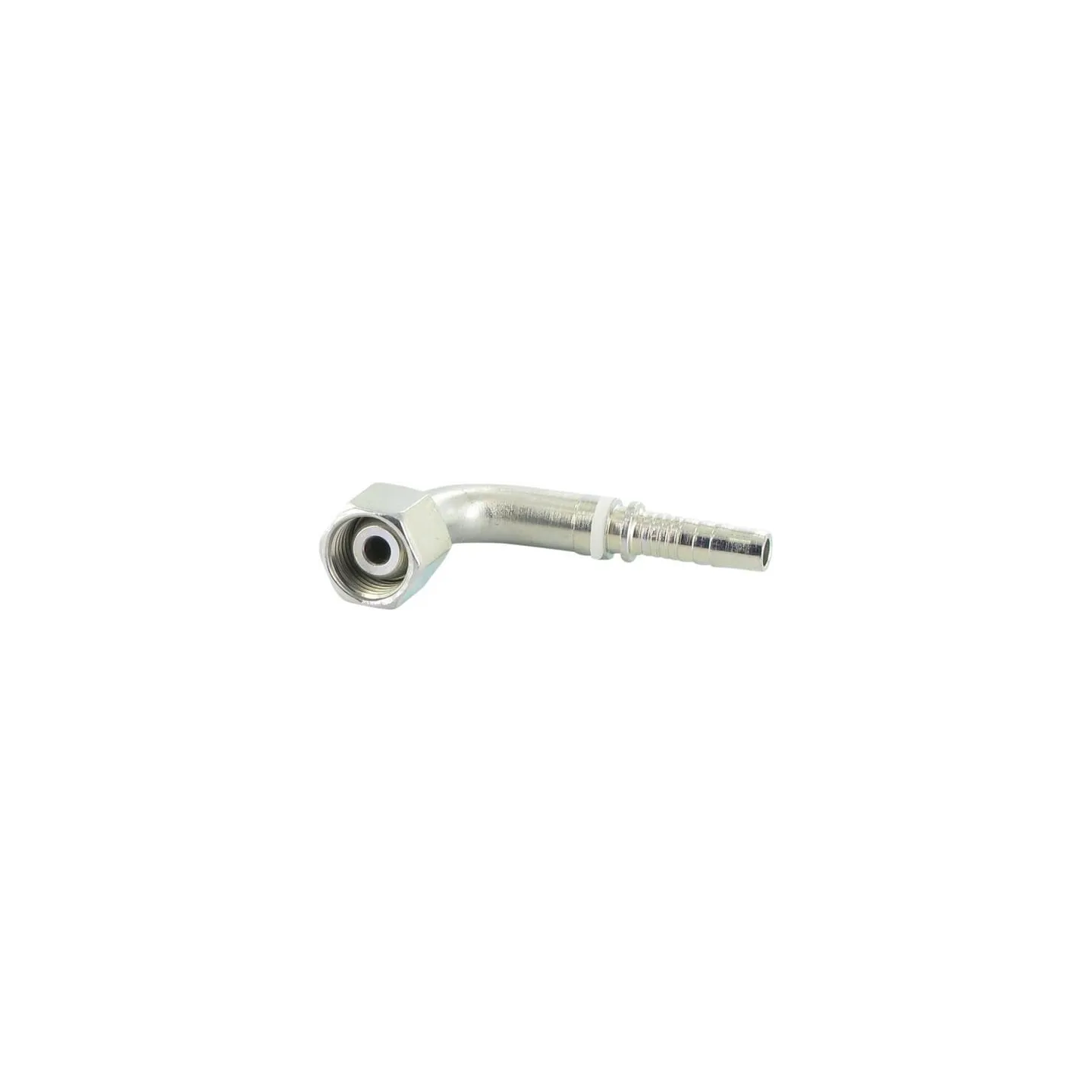

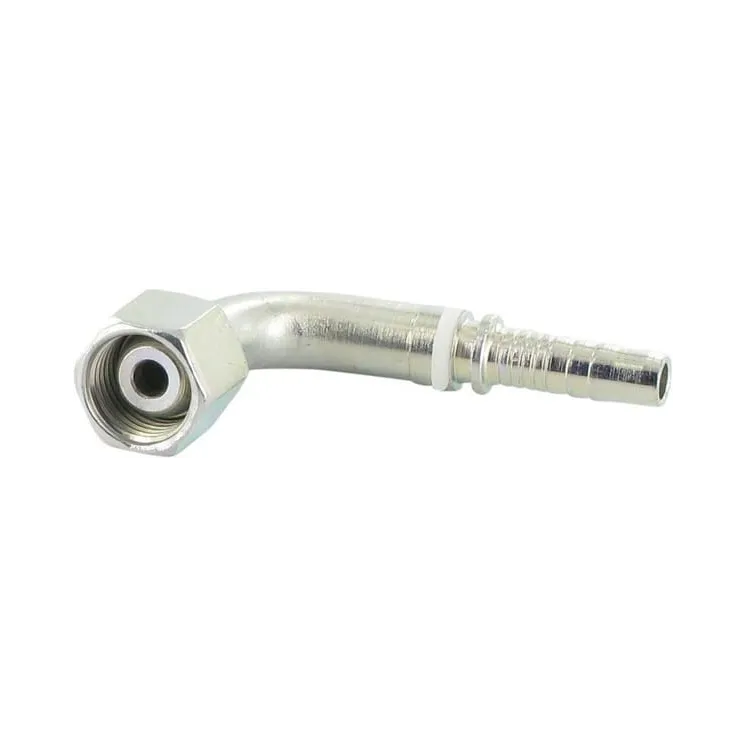

Ievietot DN08-M16x1,5-10L-90° PGL81690 Alfagomma DKM81690 PGL81690DB

Ievietot DN08-M16x1,5-10L-90° PGL81690 DKM81690 PGL81690DB

Name: Ievietot DN08-M16x1,5-10L-90° PGL81690 DKM81690 PGL81690DB
Brand: Alfagomma
SKU: PGL81690
Price: 3.27 EUR
Availability: InStock

Apmaksas iespējas

3,27 €

AR PVN

4-5 Darba dienas

Ievietot DN08-M16x1,5-10L-90° PGL81690 Alfagomma DKM81690 PGL81690DB

IR NOLIKTAVĀ

ID: 89480

Apraksts

Part number	PGL81690
EAN
Unit	Each
Product details	Cone, metal on metal seal Cutting ring adaptors L series 24° cone Adaptors with 60° cone Do not use for 4-layer hose HDR (4SP)
Shape	Elbow - 2 connection sides
Connection no 1 type	Cone
Connection no 1 type - male/female	Female
Connection no 1 type code	DKM
Connection no 1 length	30 mm
Connection no 1 thread diameter	M16
Connection no 1 thread pitch	1.50 mm
HConnection no 1 wrench size	19.0 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection 2, diameter	5/16 Inch
Connection 2, diameter	8 mm
Angle	90 °
Cone angle	60 °
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	10L
