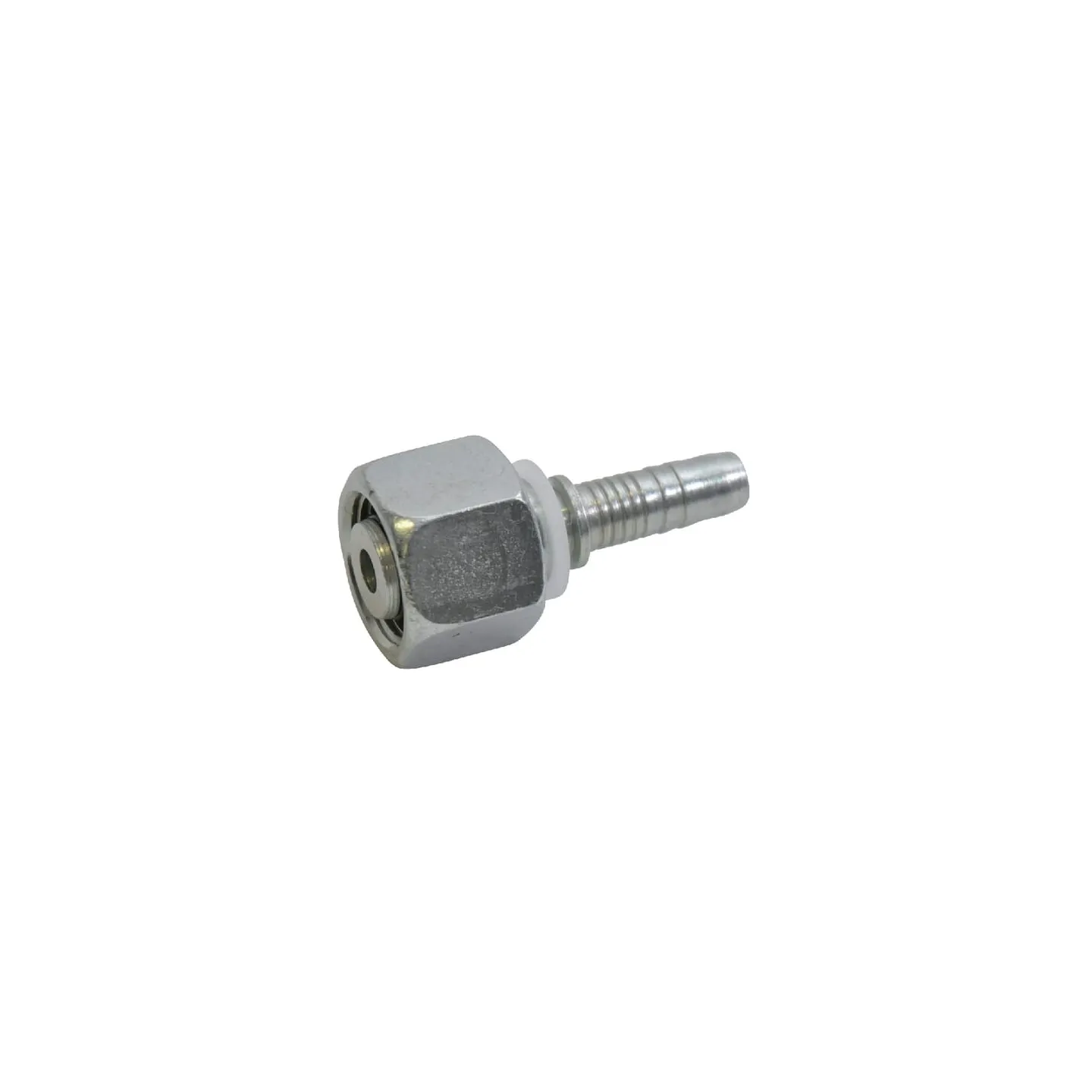

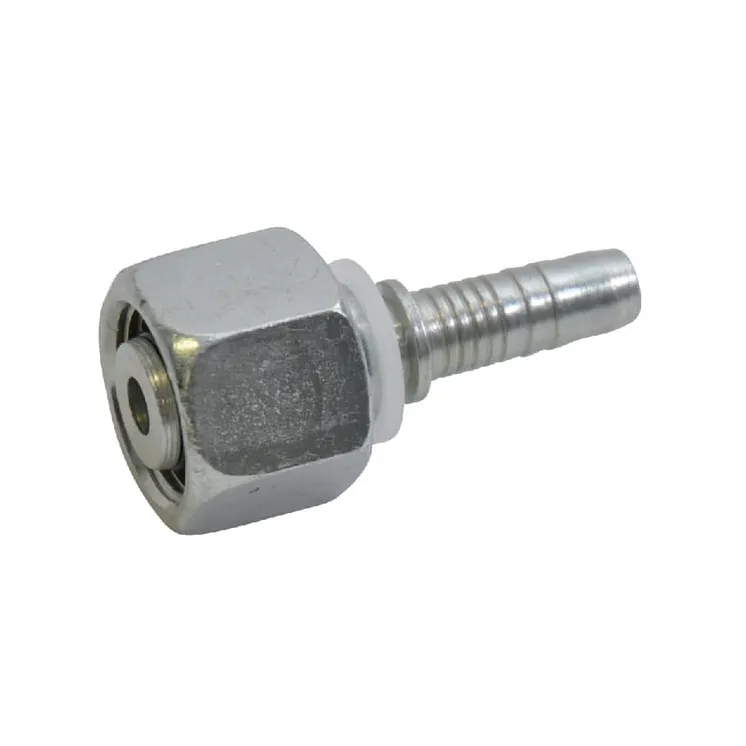

Ievietojiet DN25-M42x2,0-30S PGSO2542 DKOS2542

Name: Ievietojiet DN25-M42x2,0-30S PGSO2542 DKOS2542
Brand: Alfagomma
SKU: PGSO2542
Price: 12.4 EUR
Availability: BackOrder

Apmaksas iespējas

12,40 €

AR PVN

Pēc pieprasījuma

Ievietojiet DN25-M42x2,0-30S PGSO2542 Alfagomma DKOS2542

Uz pasūtījumu

ID: 89483

Apraksts

Part number	PGSO2542
EAN	8719493101133
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors S series
Includes	Insert O-ring
Long description	Application range: S-series cutting ring adapter Consists of: Swage coupling O-ring Properties: Cone, sealing cone with O-ring seal Technical information: Available in s
Surface treatment	Zinc-plated White passivated
Cone angle	24 °
Connection 2, diameter	1 Inch
Connection 2, diameter	25 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	43.1 mm
F1Connection no 1 thread diameter	M42
Connection no 1 thread type	Metric
Connection no 1 type code	DKOS
Connection no 1 type - male/female	Female
Connection no 1 type	Swivel nut
CH1Connection no 1 wrench size	50.0 mm
Material	Steel
Shape	Straight - 2 connection sides
