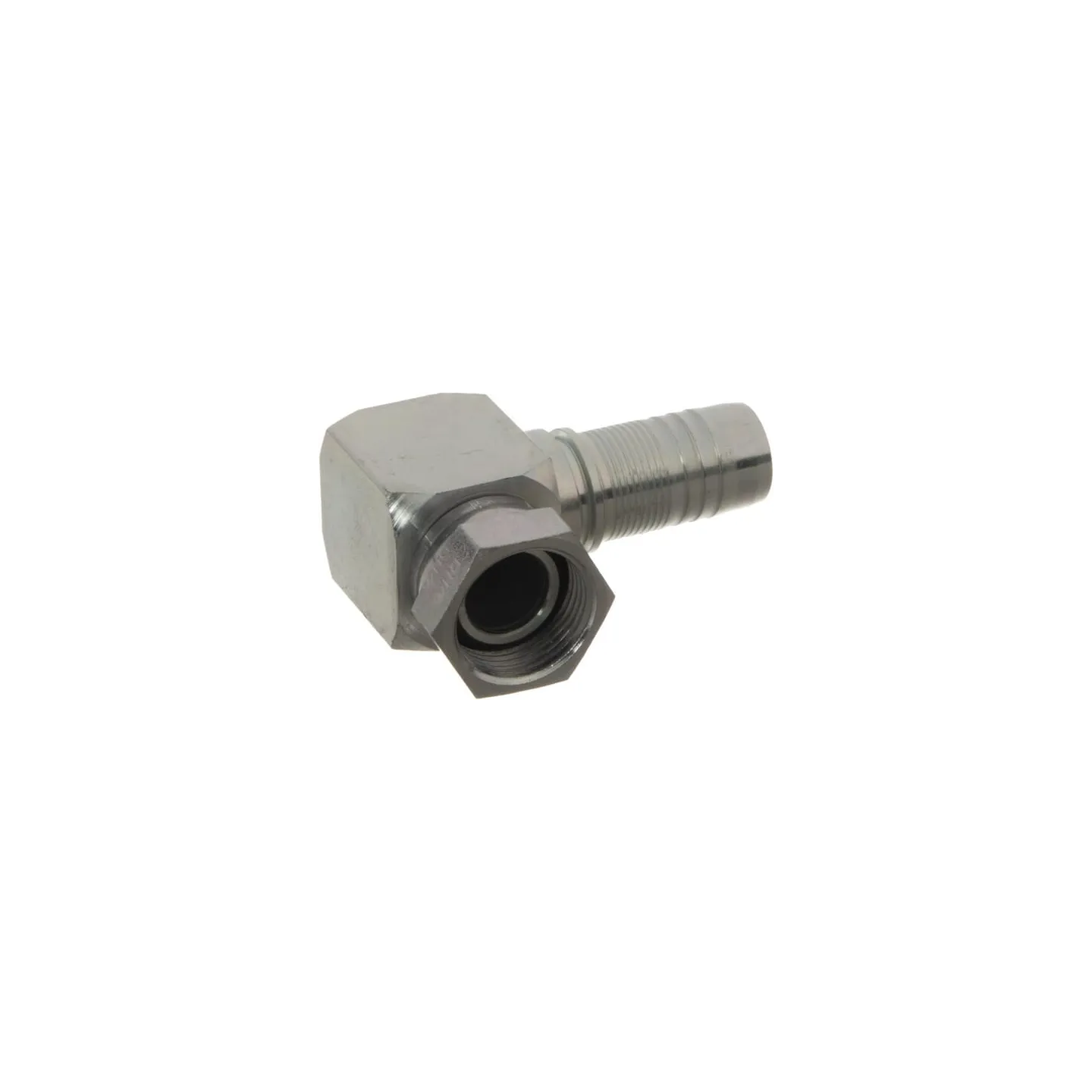

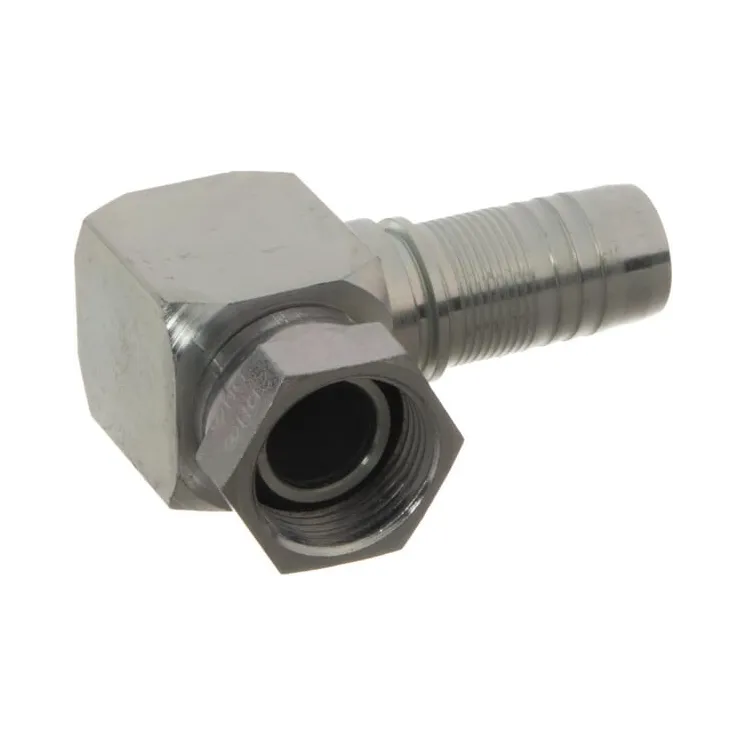

Ievietojiet DN25-1 BSP-90° PF251690S

Name: Ievietojiet DN25-1 BSP-90° PF251690S
Brand: Alfagomma
SKU: PF251690S
Price: 30.69 EUR
Availability: BackOrder

Apmaksas iespējas

30,69 €

AR PVN

Pēc pieprasījuma

Ievietojiet DN25-1 BSP-90° PF251690S Alfagomma

Uz pasūtījumu

ID: 89507

Apraksts

Part number	PF251690S
EAN
Unit	Each
Pros	Suitable for small installation space
Product details	Low elbow - O-ring seal
Benefits	Suitable for confined installation spaces
Includes	Insert O-ring
Surface treatment	Zinc-plated White passivated
Angle	90 °
Cone angle	60 °
DConnection 2, centre to end distance	46 mm
Connection 2, diameter	1 Inch
Connection 2, diameter	25 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	45 mm
Connection no 1 diameter	1 Inch
Connection no 1 thread type	BSP
Connection no 1 type code	DKOR
Connection no 1 type - male/female	Female
Connection no 1 type	Cone
CH1Connection no 1 wrench size	38.0 mm
ISO standard	228
Material	Steel
Shape	Elbow - 2 connection sides
