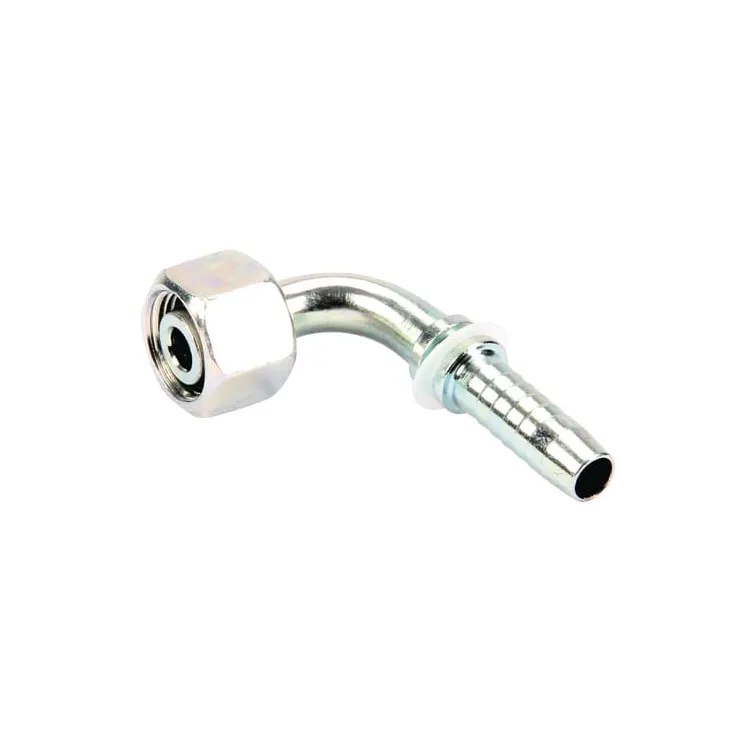

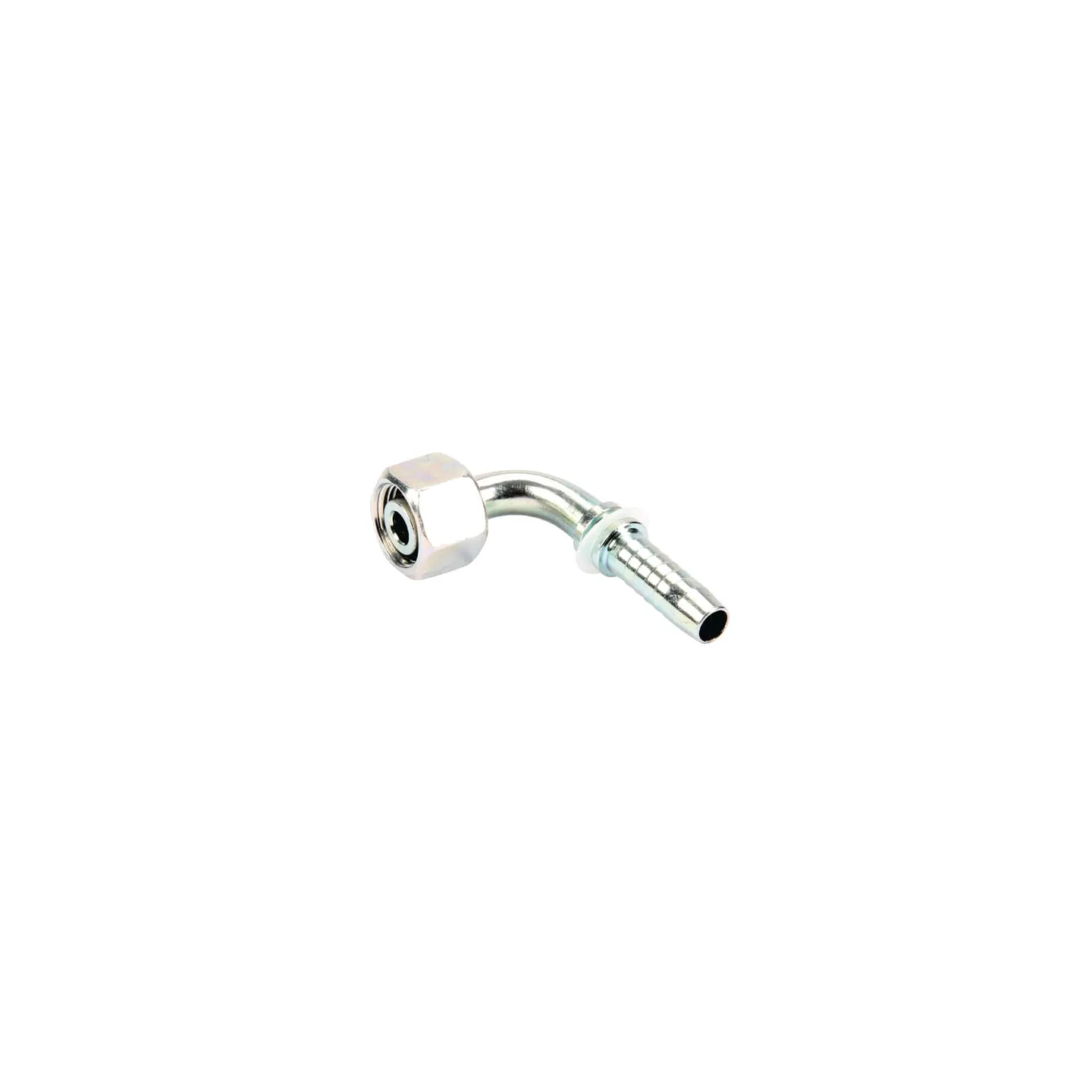

Ievietojiet DN06-M16x1,5-10L-90° PGLO61690 VFR4213

Name: Ievietojiet DN06-M16x1,5-10L-90° PGLO61690 VFR4213
Brand: Alfagomma
SKU: PGLO61690
Price: 2.78 EUR
Availability: InStock

Apmaksas iespējas

2,78 €

AR PVN

4-5 Darba dienas

Ievietojiet DN06-M16x1,5-10L-90° PGLO61690 Alfagomma VFR4213

IR NOLIKTAVĀ

ID: 89524

Apraksts

Part number	PGLO61690
EAN	8716106441198
Unit	Each
Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors L series
Includes	Insert O-ring
Shape	Elbow - 2 connection sides
Connection no 1 type	Cone
Connection no 1 type - male/female	Female
Connection no 1 type code	DKOL
F1Connection no 1 thread diameter	M16
Connection no 1 thread pitch	1.50 mm
CH1Connection no 1 wrench size	19.0 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection 2, diameter	1/4 Inch
Connection 2, diameter	6 mm
DConnection 2, centre to end distance	32.5 mm
CConnection centre to insert distance	28 mm
Angle	90 °
Cone angle	24 °
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	10L
Original number equivalent	H1221593-041600
