Ievietot DN10-M22x1,5-14S-45° PGSO102245

Name: Ievietot DN10-M22x1,5-14S-45° PGSO102245
Brand: Alfagomma
SKU: PGSO102245
Price: 4.79 EUR
Availability: BackOrder

Apmaksas iespējas

4,79 €

AR PVN

Pēc pieprasījuma

Ievietot DN10-M22x1,5-14S-45° PGSO102245 Alfagomma

Uz pasūtījumu

ID: 89547

Apraksts

Part number	PGSO102245
EAN
Unit	Each

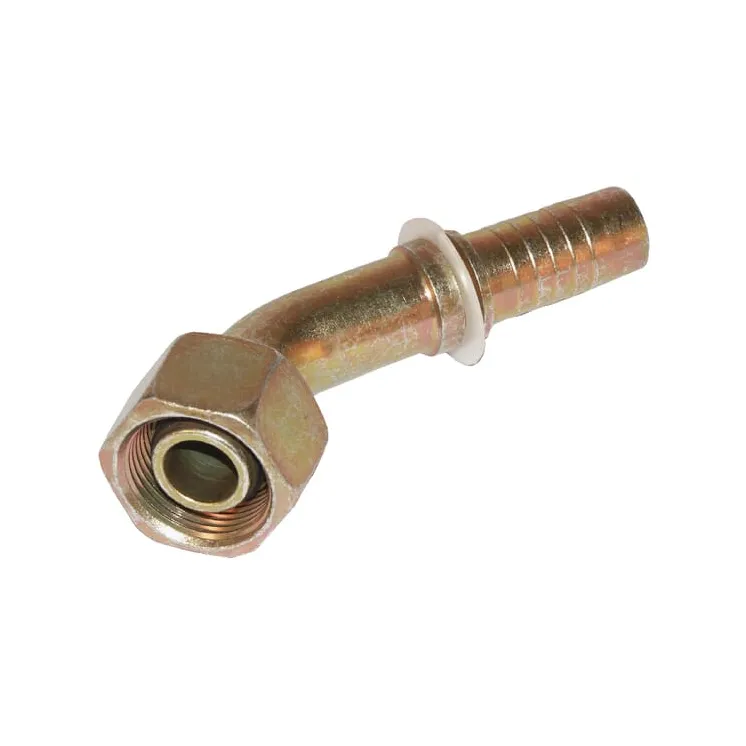

Product details	Cone, sealing cone with O-ring seal Cutting ring adaptors S series
Includes	Insert O-ring
Surface treatment	Zinc-plated White passivated
Angle	45 °
Cone angle	24 °
DConnection 2, centre to end distance	21 mm
Connection 2, diameter	3/8 Inch
Connection 2, diameter	10 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	52.9 mm
Connection no 1 thread pitch	1.50 mm
F1Connection no 1 thread diameter	M22
Connection no 1 type code	DKOS
Connection no 1 type - male/female	Female
Connection no 1 type	Cone
CH1Connection no 1 wrench size	27.0 mm
Material	Steel
Original number equivalent	H1221643-062200
Series	14S
Shape	Elbow - 2 connection sides
