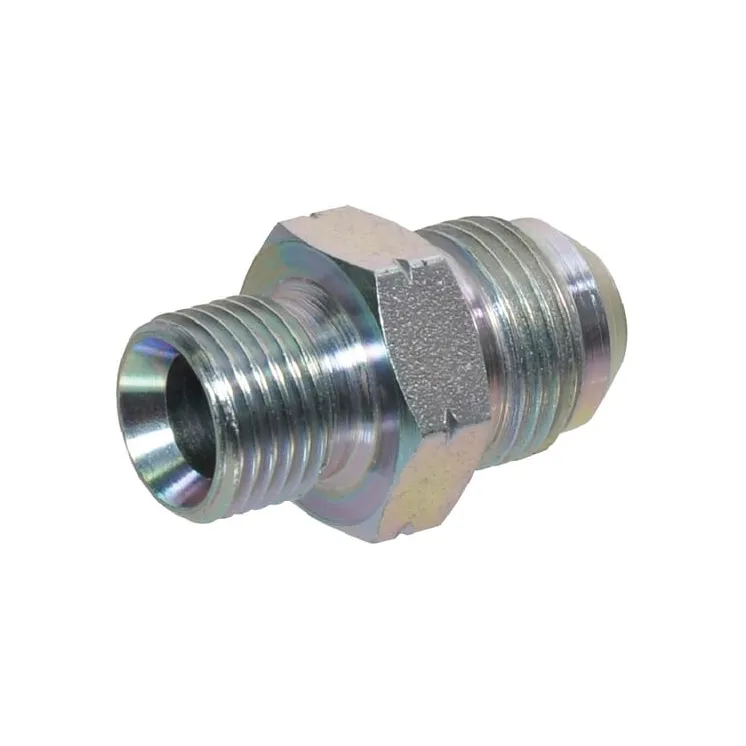

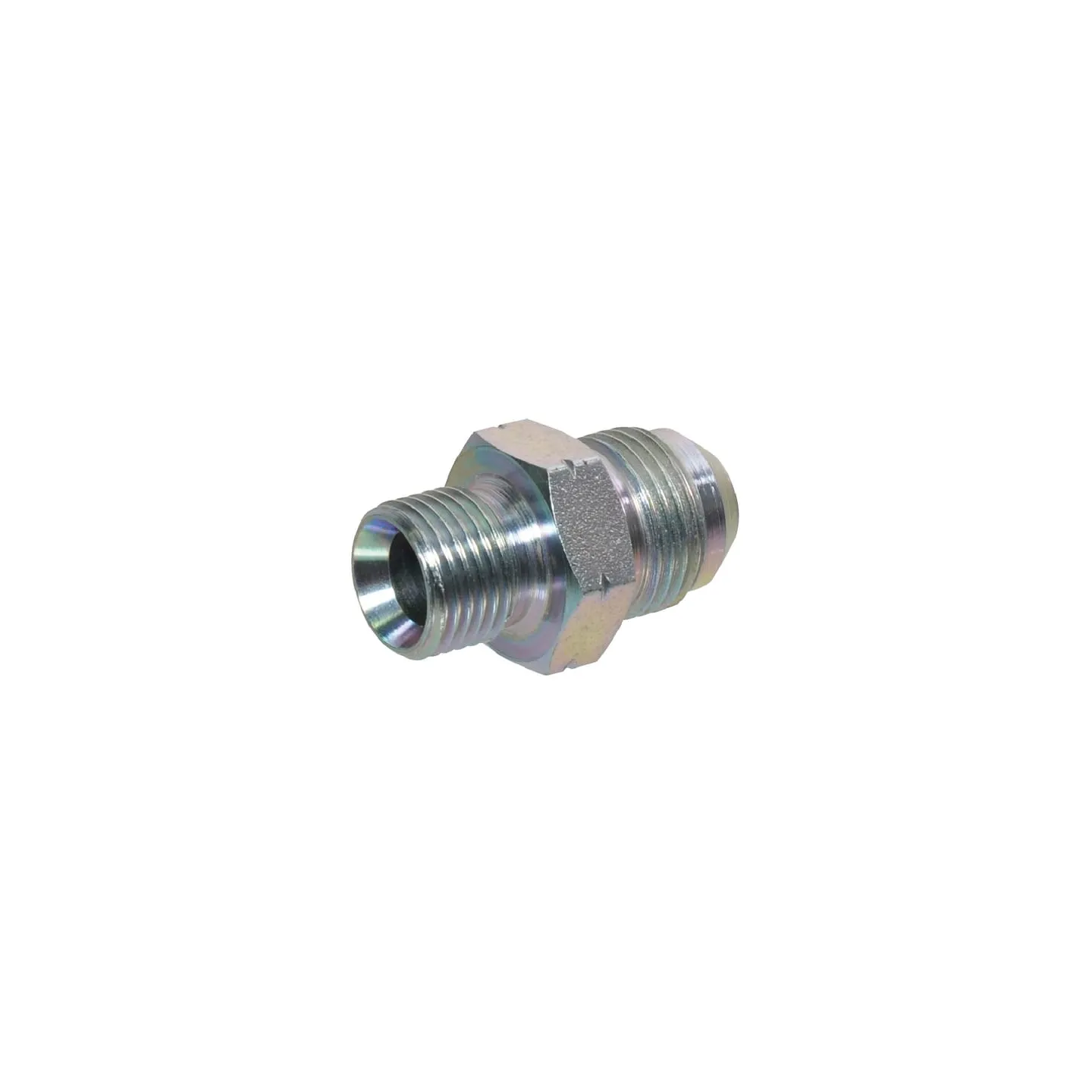

Vīriešu radze 1/2 JIC x M14 RIM0814

Name: Vīriešu radze 1/2 JIC x M14 RIM0814
Brand: Alfagomma
SKU: RIM0814
Price: 5.43 EUR
Availability: InStock

Apmaksas iespējas

5,43 €

AR PVN

4-5 Darba dienas

Vīriešu radze 1/2 JIC x M14 RIM0814 Alfagomma

IR NOLIKTAVĀ

ID: 89766

Apraksts

Part number	RIM0814
EAN
Unit	Each
Long description	Technical information: For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514. Cone acc. To UNF ANSI.
Connection 2, thread diameter	1/2 Inch
Connection 2, thread type	JIC
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection no 1 thread pitch	1.50 mm
Connection no 1 thread diameter	M14
Connection no 1 thread type	Metric
Connection no 1 threads per inch	20
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
Max working pressure	380 BAR
Pipe diameter	8 mm
Pipe diameter	5/16 Inch
Shape	Straight - 2 connection sides
Total length	34 mm
