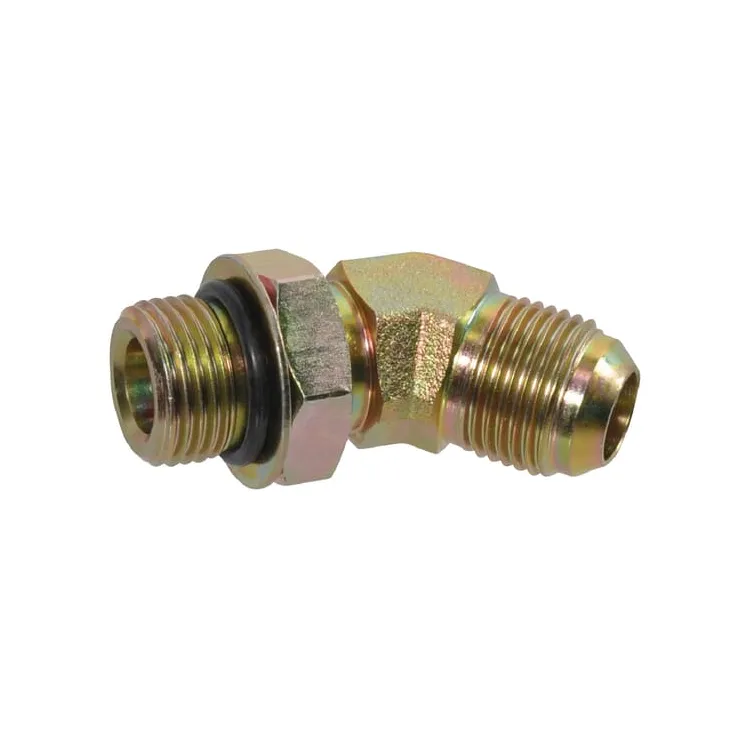

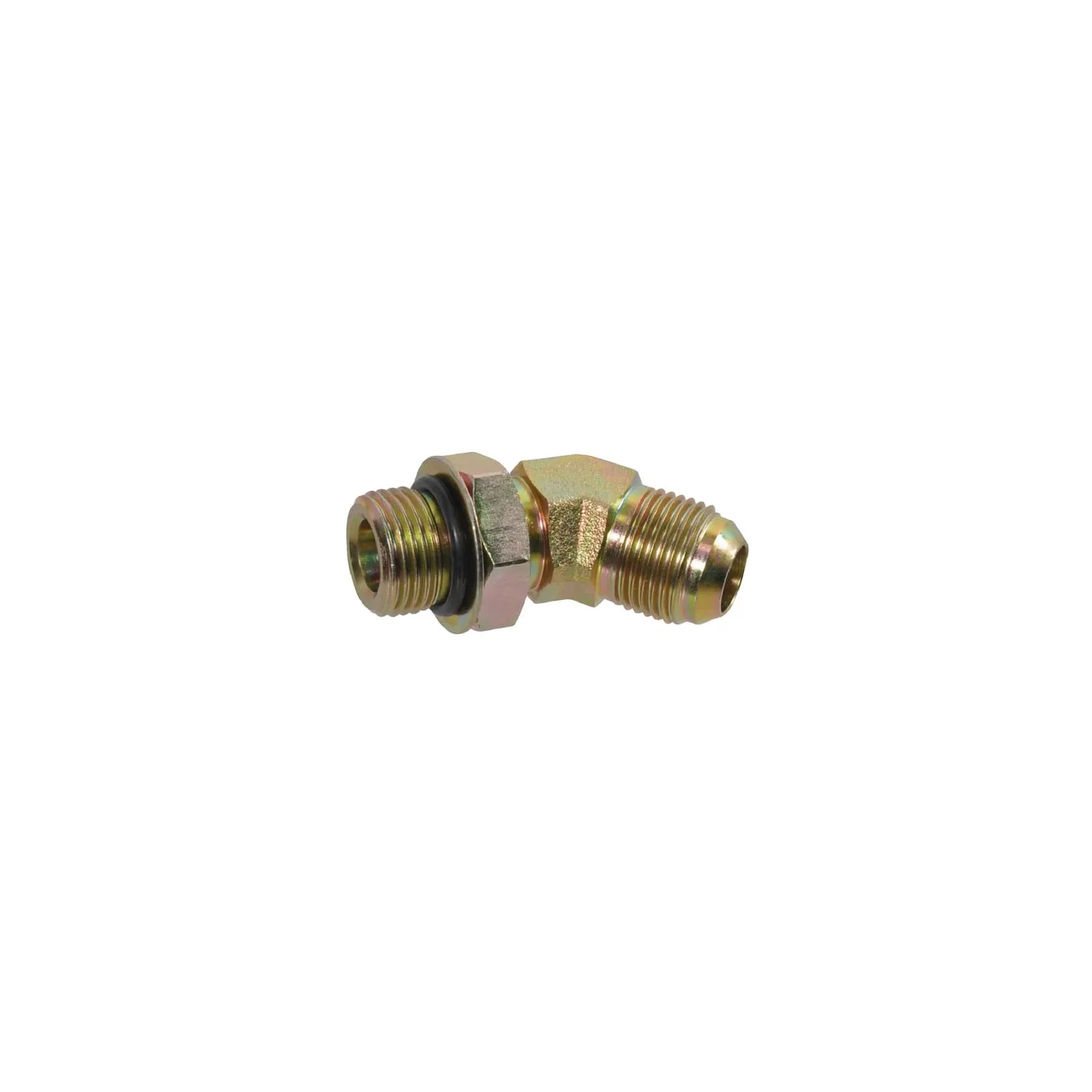

Elkonis M/M 7/8 JIC x 7/8 UNF RIU4514

Name: Elkonis M/M 7/8 JIC x 7/8 UNF RIU4514
Brand: Alfagomma
SKU: RIU4514
Price: 11.34 EUR
Availability: InStock

Apmaksas iespējas

11,34 €

AR PVN

4-5 Darba dienas

Elkonis M/M 7/8 JIC x 7/8 UNF RIU4514 Alfagomma

IR NOLIKTAVĀ

ID: 89767

Apraksts

Part number	RIU4514
EAN
Unit	Each
Product details	For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514 Connection thread on the 37° cone side is UNF in accordance with ANSI Screw-in couplings Adjustable 45°
Connection 2, centre to end distance	29 mm
Connection 2, thread type	UNF
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection 2, wrench size	27.0 mm
F1Connection no 1 thread diameter	7/8 Inch
Connection no 1 thread type	JIC
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
Connection no 1 wrench size	22.0 mm
Connections distance	34.5 mm
Max working pressure	240 BAR
Pipe diameter range	14-16 mm
Pipe diameter	5/8 Inch
Shape	Elbow - 2 connection sides
