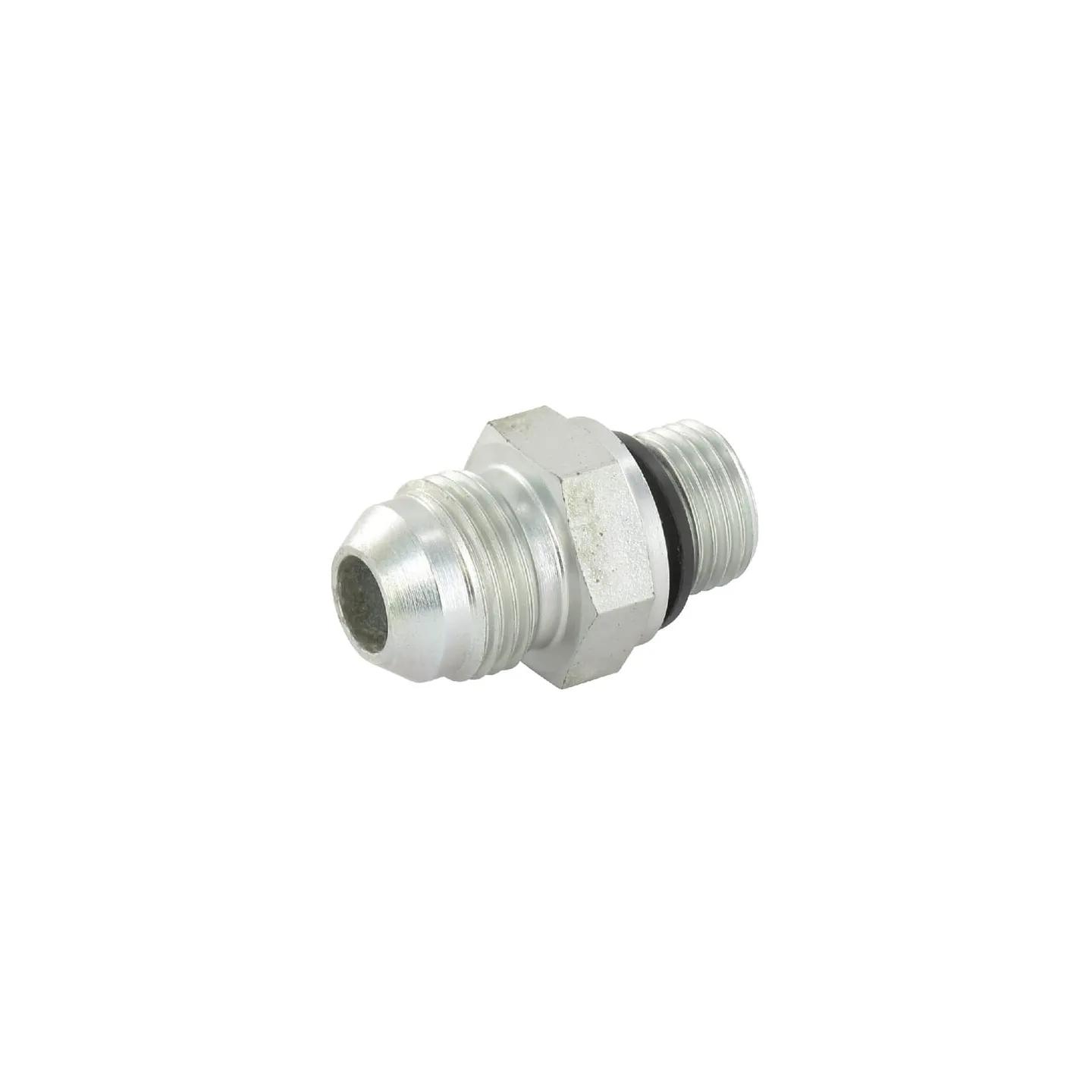

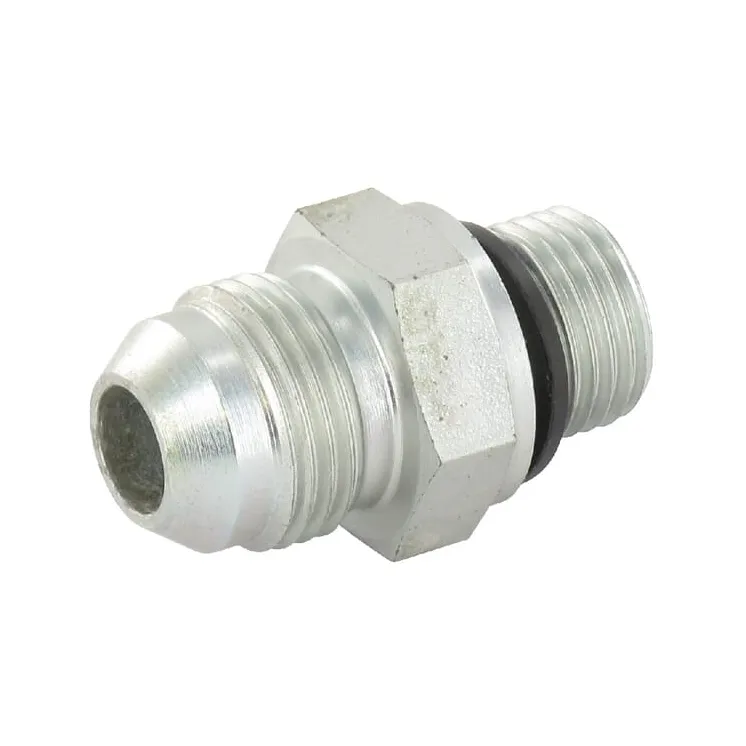

Vīriešu radze 3/4 JIC x M16 RIM1216WD

Name: Vīriešu radze 3/4 JIC x M16 RIM1216WD
Brand: Alfagomma
SKU: RIM1216WD
Price: 5.42 EUR
Availability: InStock

Apmaksas iespējas

5,42 €

AR PVN

4-5 Darba dienas

Vīriešu radze 3/4 JIC x M16 RIM1216WD Alfagomma

IR NOLIKTAVĀ

ID: 89770

Apraksts

Part number	RIM1216WD
EAN
Unit	Each
Product details	Screw-in side metric with WD seal For pipe with 37º (74º) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514. Connection thread on the 37° cone side is UNF in accordance with ANSI
Cone angle	74 °
Connection 2, length	12 mm
F2Connection 2, thread pitch	1.50 mm
Connection 2, thread diameter	M16
Connection 2, thread type	Metric
Connection 2, type	Thread
F1Connection no 1 thread diameter	3/4 Inch
Connection no 1 thread type	JIC
Connection no 1 type	Thread
CHConnection no 1 wrench size	22.0 mm
Pipe diameter	12 mm
Pipe diameter	1/2 Inch
Shape	Straight - 2 connection sides
Total length	37.5 mm
