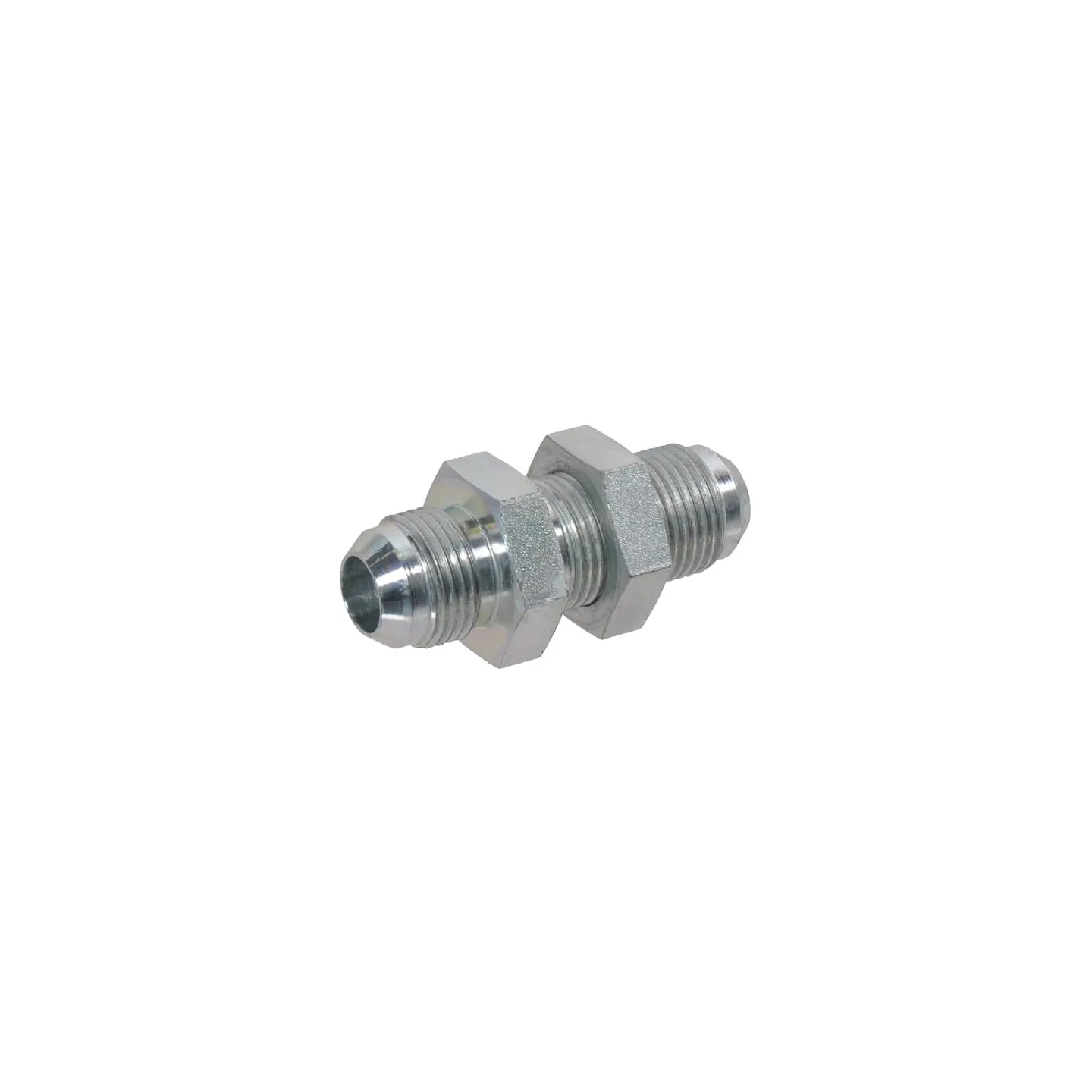

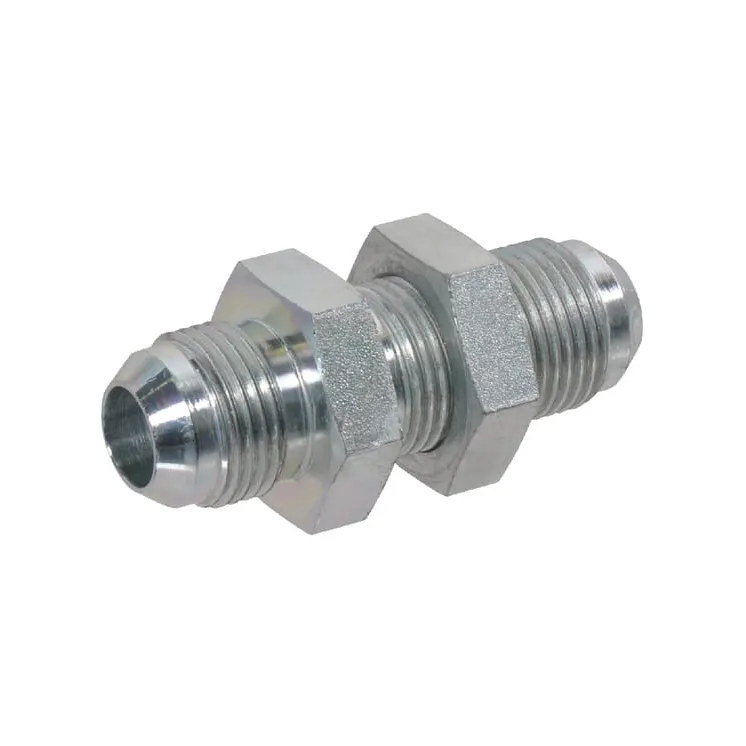

Starpsienu adapteris 9/16 JIC RS09 VNJS09

Name: Starpsienu adapteris 9/16 JIC RS09 VNJS09
Brand: Alfagomma
SKU: RS09
Price: 6.49 EUR
Availability: InStock

Apmaksas iespējas

6,49 €

AR PVN

4-5 Darba dienas

Starpsienu adapteris 9/16 JIC RS09 Alfagomma VNJS09

IR NOLIKTAVĀ

ID: 89786

Apraksts

Part number	RS09
EAN
Unit	Each
Product details	For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514 Connection thread on the 37° cone side is UNF in accordance with ANSI JIC
Cone angle	74 °
Connection 2, thread diameter	9/16 Inch
Connection 2, thread length	33.5 mm
Connection 2, thread type	JIC
Connection 2, threads per inch	18
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection no 1 thread diameter	9/16 Inch
Connection no 1 thread type	JIC
Connection no 1 threads per inch	18
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
Length	54 mm
Max working pressure	380 BAR
Pipe diameter	10 mm
Shape	Straight - 2 connection sides
