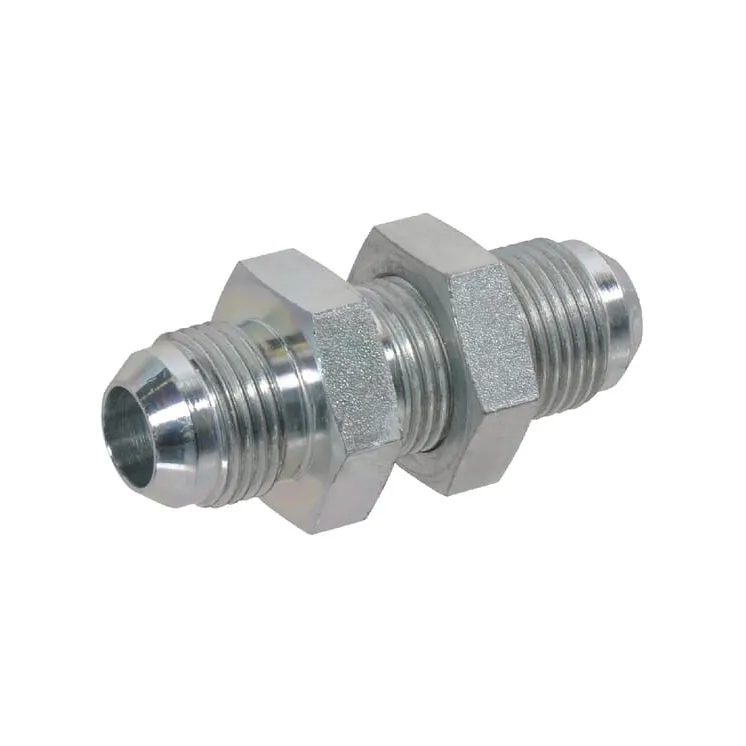

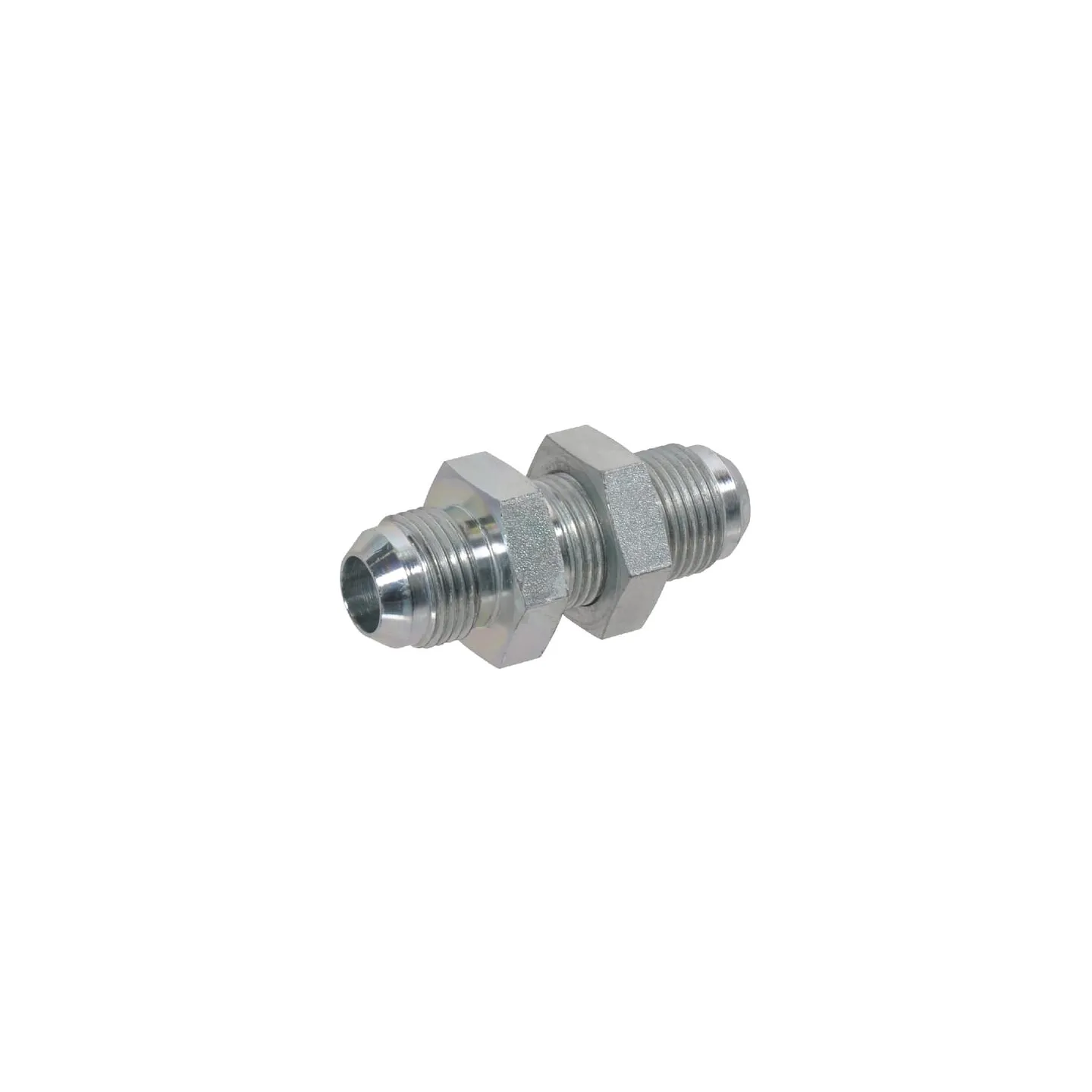

Starpsienu adapteris 7/8 JIC RS14

Name: Starpsienu adapteris 7/8 JIC RS14
Brand: Alfagomma
SKU: RS14
Price: 13.02 EUR
Availability: InStock

Apmaksas iespējas

13,02 €

AR PVN

4-5 Darba dienas

Starpsienu adapteris 7/8 JIC RS14 Alfagomma

IR NOLIKTAVĀ

ID: 89789

Apraksts

Part number	RS14
EAN
Unit	Each
Product details	For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514 Connection thread on the 37° cone side is UNF in accordance with ANSI JIC
Cone angle	74 °
Connection 2, thread diameter	7/8 Inch
Connection 2, thread length	41 mm
Connection 2, thread type	JIC
Connection 2, threads per inch	14
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection no 1 thread diameter	7/8 Inch
Connection no 1 thread type	JIC
Connection no 1 threads per inch	14
Connection no 1 type - male/female	Male
Connection no 1 type	Thread
Length	67.5 mm
Max working pressure	280 BAR
Pipe diameter	16 mm
Shape	Straight - 2 connection sides
