Ievietojiet NS-DN20 ar atloku 47.6 SFSNS2016

Name: Ievietojiet NS-DN20 ar atloku 47.6 SFSNS2016
Brand: Alfagomma
SKU: SFSNS2016
Price: 27.44 EUR
Availability: BackOrder

Apmaksas iespējas

27,44 €

AR PVN

Pēc pieprasījuma

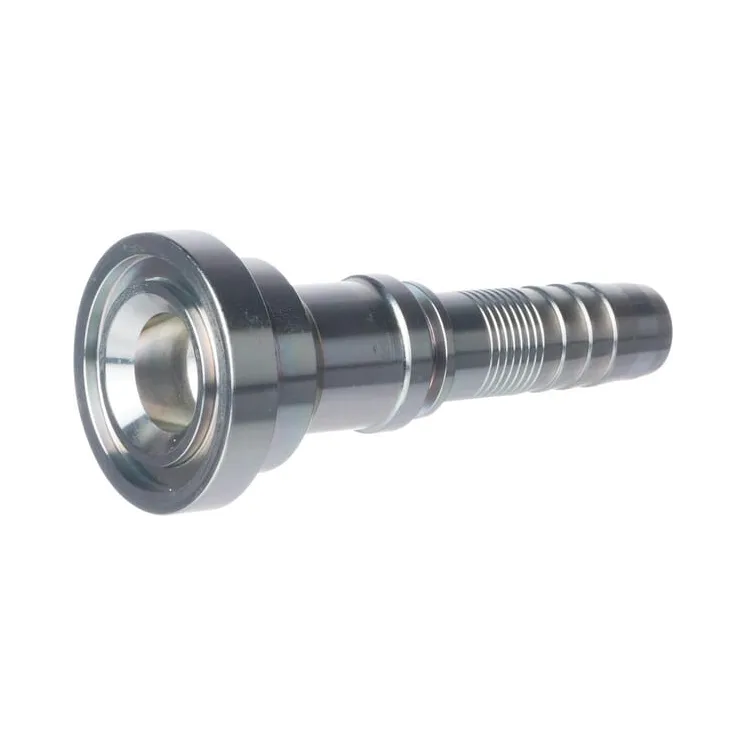

Ievietojiet NS-DN20 ar atloku 47.6 SFSNS2016 Alfagomma

Uz pasūtījumu

ID: 89802

Apraksts

Part number	SFSNS2016
EAN
Unit	Each
Long description	Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros	Press fittings help ensure faster and easier hose assembly and help to save costs. Processing produces less dirt, smell and waste. No special tool needed to skive the hose.
Product details	The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses. With these press fittings, there is no need to skive the inner and outer casing.
Connection 2, diameter	3/4 Inch
Connection 2, diameter	20 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection no 1 center to end distance	56.5 mm
Connection no 1 diameter	3/4 Inch
Connection no 1 type - male/female	Male
Connection no 1 type	Flange
FDFlange outside diameter	47.6 mm
Flange standard pressure series	6000
Max working pressure	415 BAR
Shape	Straight - 2 connection sides
