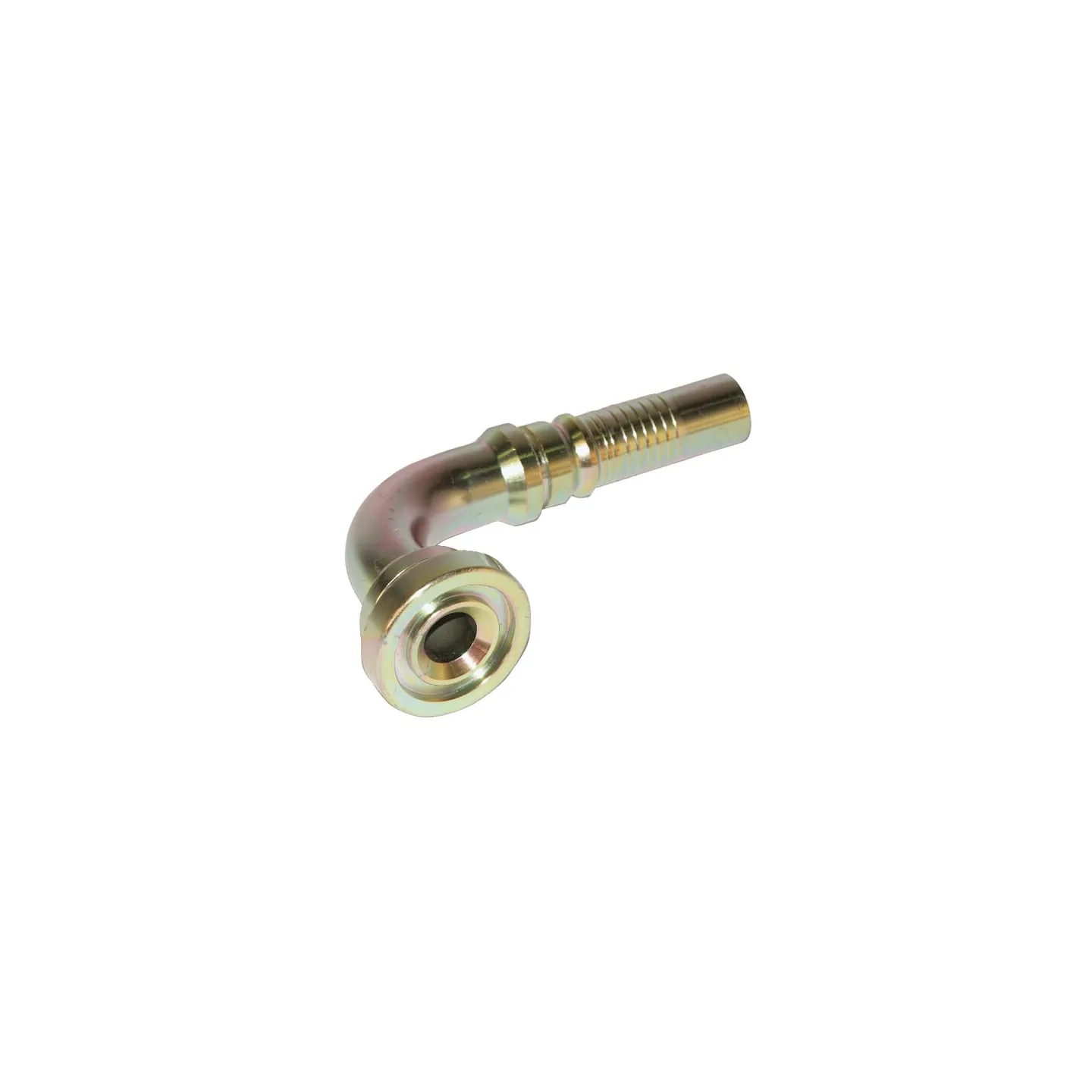

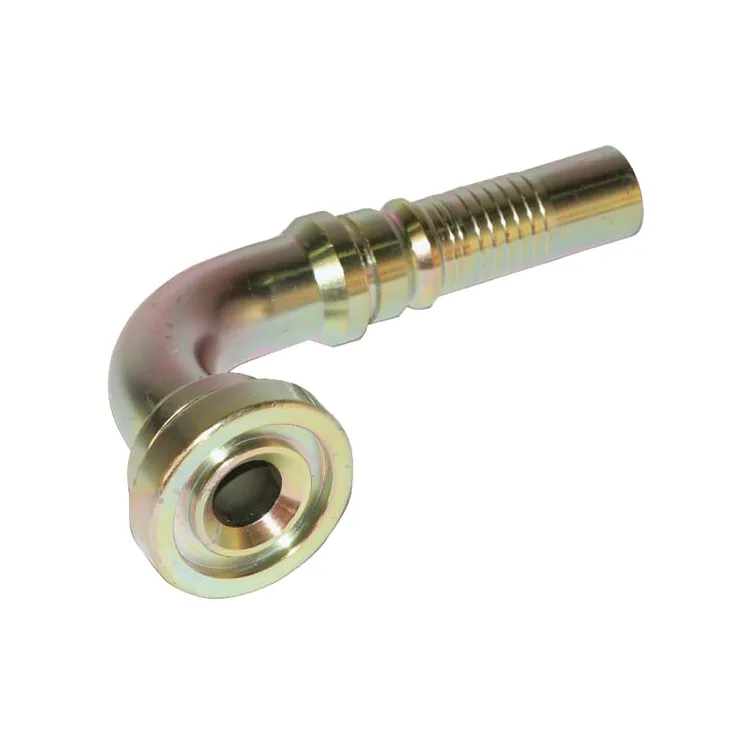

Ievietojiet 4SH-DN20 ar atloku 38.1mm-90° SFLH201290

Name: Ievietojiet 4SH-DN20 ar atloku 38.1mm-90° SFLH201290
Brand: Alfagomma
SKU: SFLH201290
Price: 24.04 EUR
Availability: BackOrder

Apmaksas iespējas

24,04 €

AR PVN

Pēc pieprasījuma

Ievietojiet 4SH-DN20 ar atloku 38.1mm-90° SFLH201290 Alfagomma

Uz pasūtījumu

ID: 89810

Apraksts

Part number	SFLH201290
EAN
Unit	Each
Pros	Press-fitting with heavy-duty anti-slip protection
Product details	Anchoring by means of interlock system OVP-ring or O-ring seal Heavy duty machines with high operating and peak pressures Hydrostatic drives Series H14
Includes	Insert Without OVP-ring or O-ring
Surface treatment	Zinc-plated White passivated
Angle	90 °
DConnection 2, centre to end distance	55 mm
Connection 2, diameter	3/4 Inch
Connection 2, diameter	20 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	63.2 mm
FDConnection no 1 diameter	38.1 mm
Connection no 1 type code	SFL
Connection no 1 type - male/female	Male
Connection no 1 type	Flange
Flange standard pressure series	3000
ISO standard	6162
Material	Steel
Original number equivalent	H1443390-121200
Shape	Elbow - 2 connection sides
