Ievietojiet NS-DN40+atloku SFLNS4024

Name: Ievietojiet NS-DN40+atloku SFLNS4024
Brand: Alfagomma
SKU: SFLNS4024
Price: 48.73 EUR
Availability: InStock

Apmaksas iespējas

48,73 €

AR PVN

4-5 Darba dienas

Ievietojiet NS-DN40+atloku SFLNS4024 Alfagomma

IR NOLIKTAVĀ

ID: 89818

Apraksts

Part number	SFLNS4024
EAN
Unit	Each

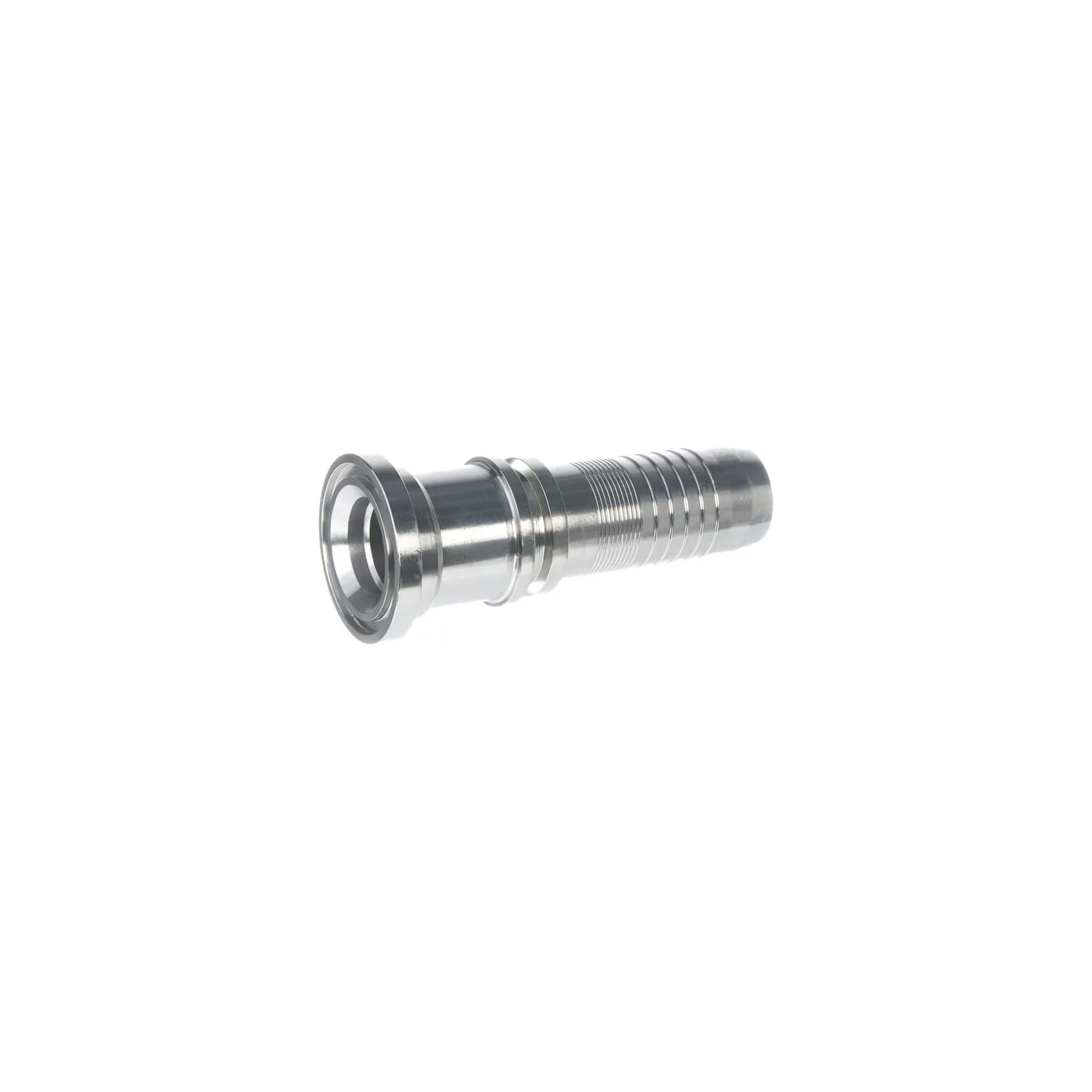

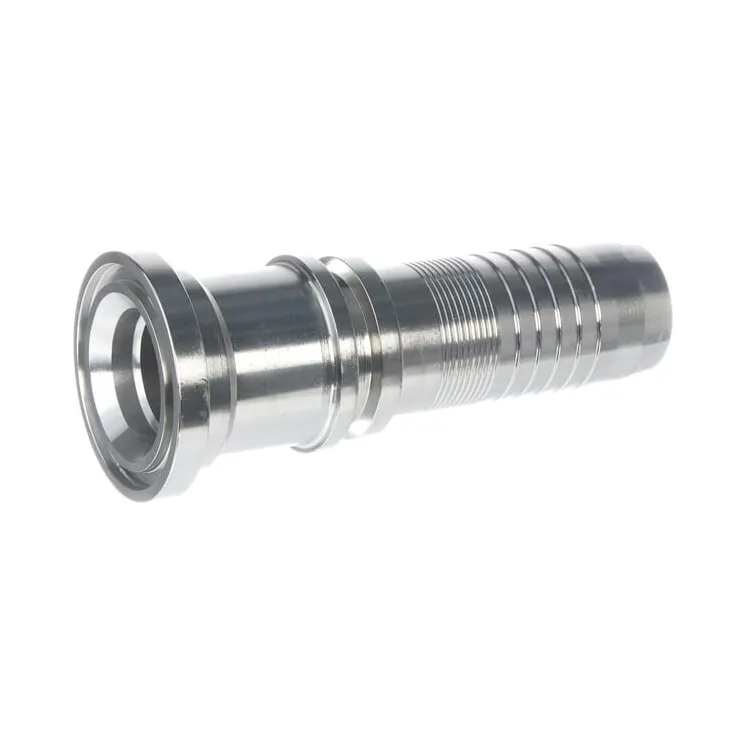

Long description	Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros	Press fittings help ensure faster and easier hose assembly and help to save costs. Processing produces less dirt, smell and waste. No special tool needed to skive the hose.
Product details	The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses. With these press fittings, there is no need to skive the inner and outer casing.
Connection 2, diameter	1-1/2 Inch
Connection 2, diameter	40 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection no 1 center to end distance	63.5 mm
Connection no 1 diameter	1-1/2 Inch
Connection no 1 type - male/female	Male
Connection no 1 type	Flange
FDFlange outside diameter	60.3 mm
Flange standard pressure series	3000
Max working pressure	345 BAR
Original number equivalent	H1343310-242400
Shape	Straight - 2 connection sides
