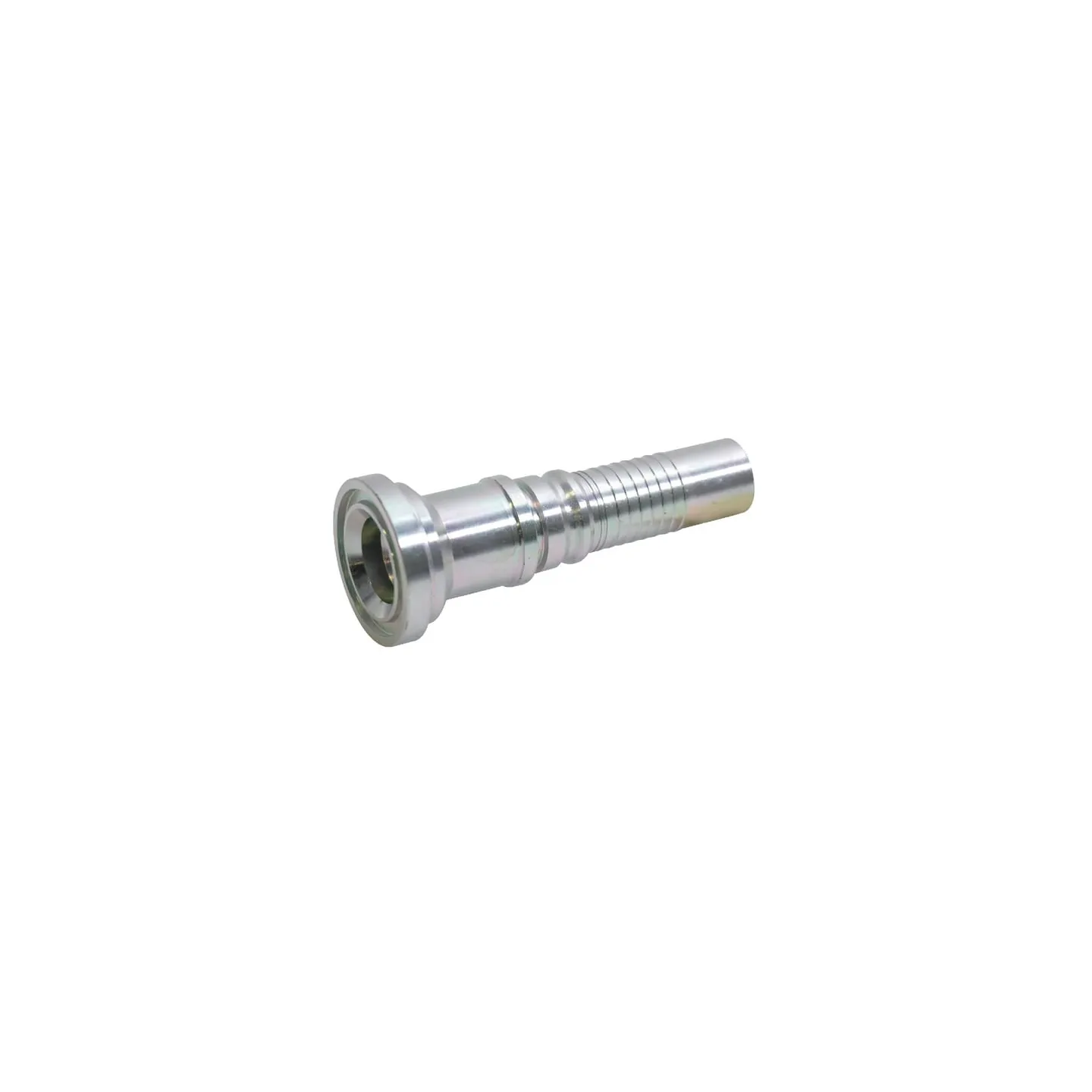

Sajūga savienojums 4SH-DN20 ar atloku ø44,5mm SFLH2016G2

Name: Sajūga savienojums 4SH-DN20 ar atloku ø44,5mm SFLH2016G2
Brand: Alfagomma
SKU: SFLH2016G2
Price: 17.45 EUR
Availability: InStock

Apmaksas iespējas

17,45 €

AR PVN

4-5 Darba dienas

Sajūga savienojums 4SH-DN20 ar atloku ø44,5mm SFLH2016G2 Alfagomma

IR NOLIKTAVĀ

ID: 89834

Apraksts

Part number	SFLH2016G2
EAN
Unit	Each
Pros	Press-fitting with heavy-duty anti-slip protection
Product details	Alfagomma Evolution G2 Anchoring by means of interlock system OVP-ring or O-ring seal Heavy duty machines with high operating and peak pressures Hydrostatic drives Series H17 Always consult the most up to date press tables, see downloads at the bottom of each web page
Includes	Insert Without OVP-ring or O-ring
Surface treatment	Zinc-plated White passivated
Connection 2, diameter	3/4 Inch
Connection 2, diameter	20 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 diameter	1 Inch
Connection no 1 diameter	20 mm
CConnection no 1 length	48 mm
Connection no 1 type code	SFL
Connection no 1 type - male/female	Male
Connection no 1 type	Flange
Flange standard pressure series	3000
ISO standard	6162
Material	Steel
Pipe diameter	20 mm
Pipe diameter	3/4 Inch
Shape	Straight - 2 connection sides
