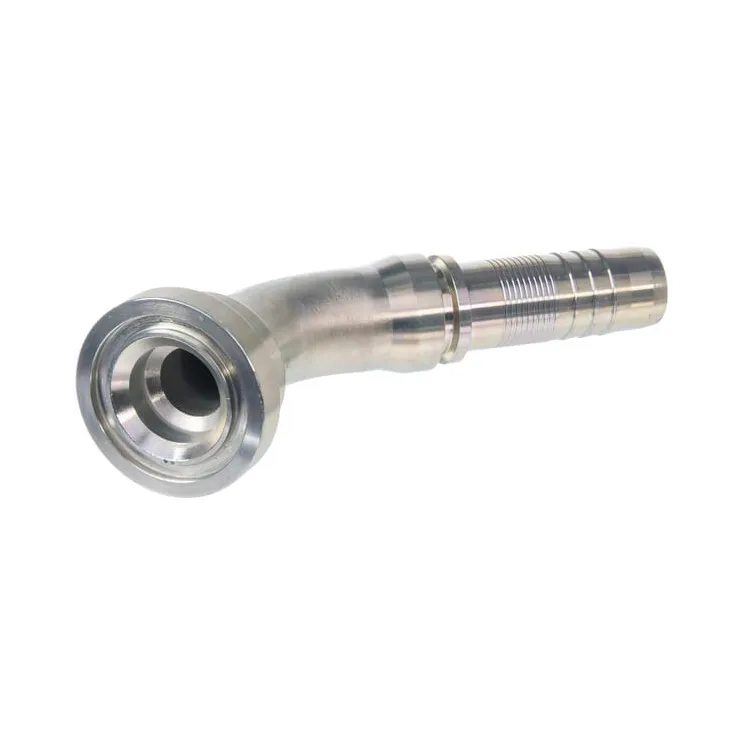

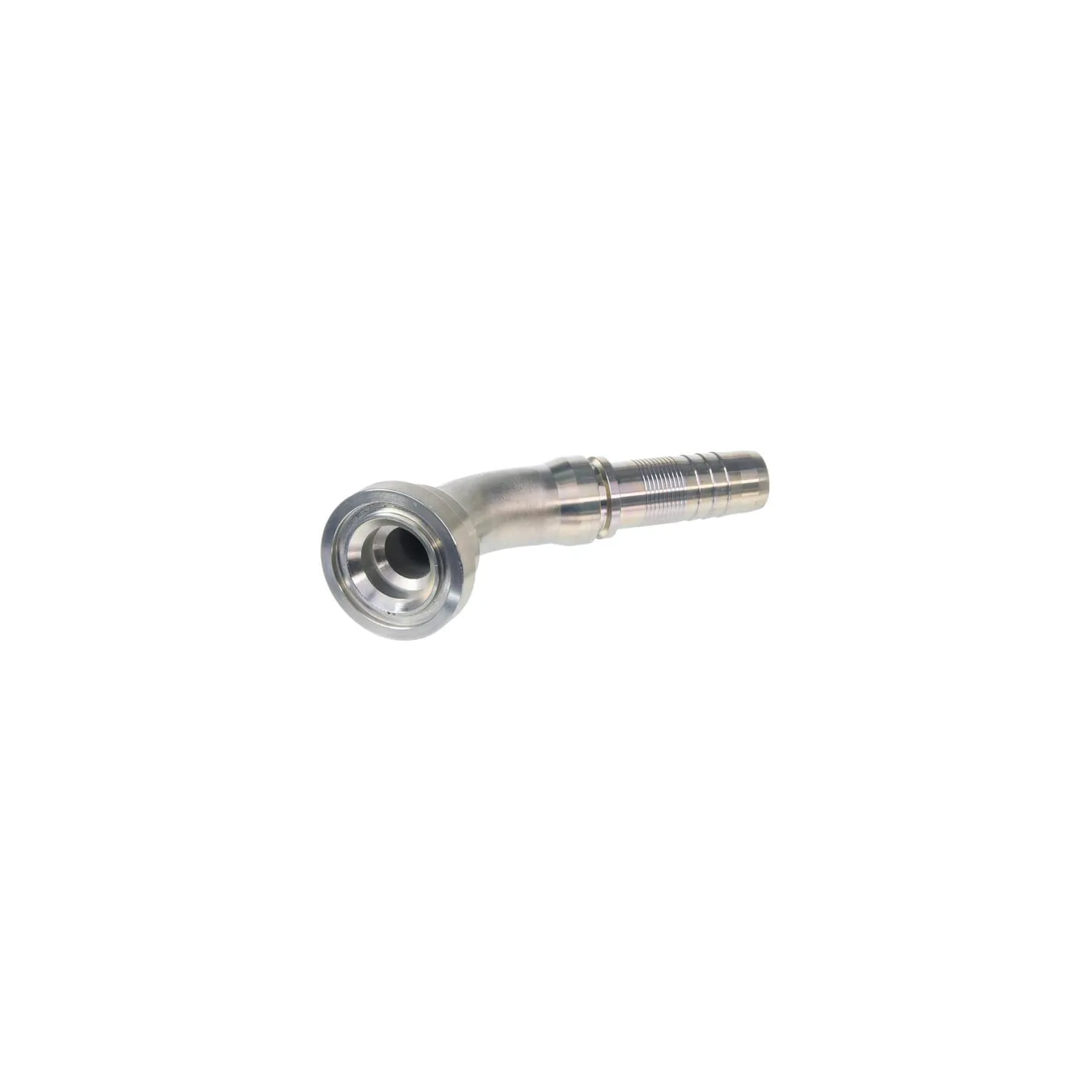

Ievietojiet NS-DN25 ar atloku 54.0 SFSNS252045

Name: Ievietojiet NS-DN25 ar atloku 54.0 SFSNS252045
Brand: Alfagomma
SKU: SFSNS252045
Price: 56.33 EUR
Availability: BackOrder

Apmaksas iespējas

56,33 €

AR PVN

Pēc pieprasījuma

Ievietojiet NS-DN25 ar atloku 54.0 SFSNS252045 Alfagomma

Uz pasūtījumu

ID: 89848

Apraksts

Part number	SFSNS252045
EAN
Unit	Each
Long description	Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros	Press fittings help ensure faster and easier hose assembly and help to save costs. Processing produces less dirt, smell and waste. No special tool needed to skive the hose.
Product details	The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses. With these press fittings, there is no need to skive the inner and outer casing.
Angle	45 °
DConnection 2, centre to end distance	44 mm
Connection 2, diameter	1 Inch
Connection 2, diameter	25 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	78 mm
FDConnection no 1 diameter	54 mm
Connection no 1 type - male/female	Male
Connection no 1 type	Flange
Flange standard pressure series	6000
Max working pressure	415 BAR
Original number equivalent	H1343640-162000
Shape	Elbow - 2 connection sides
