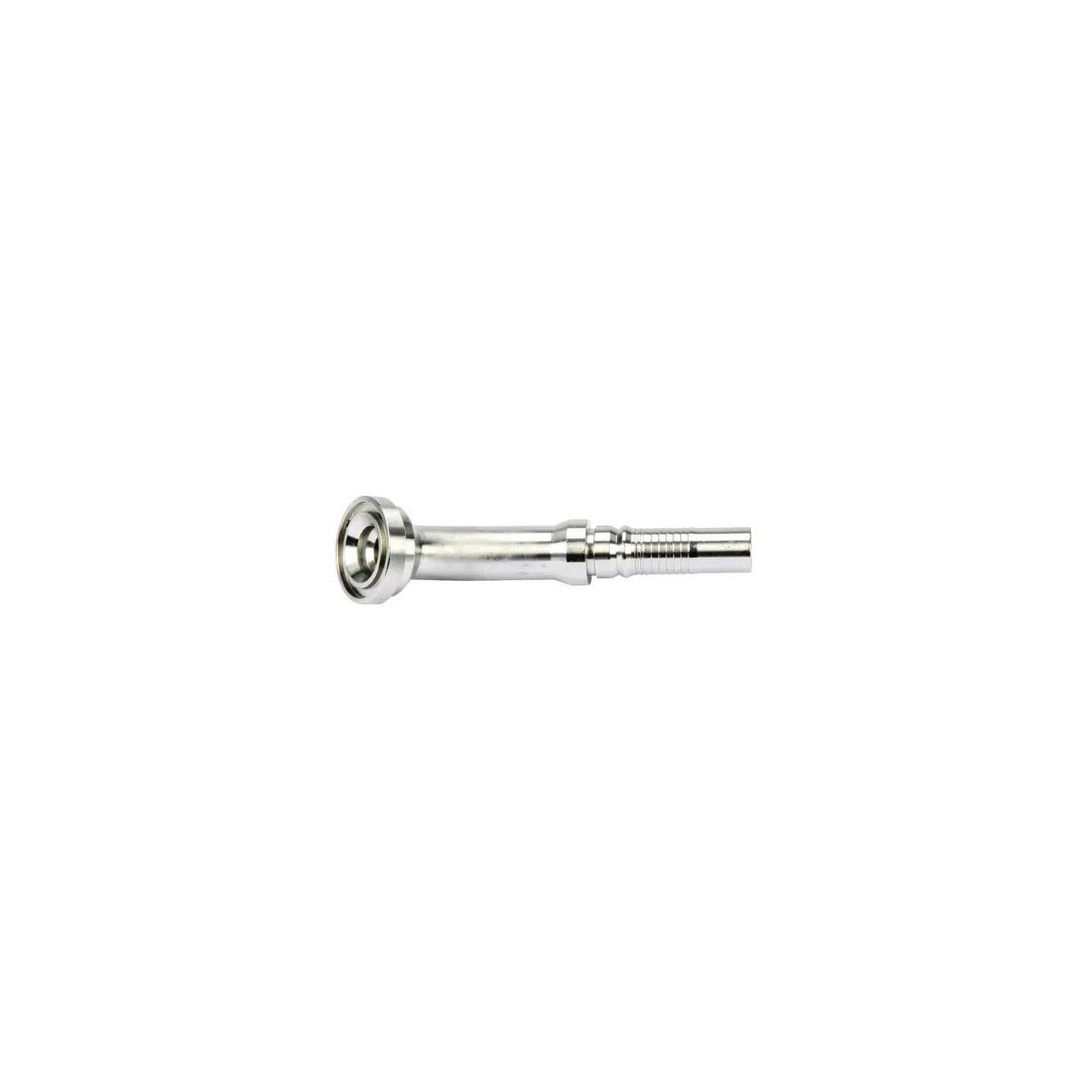

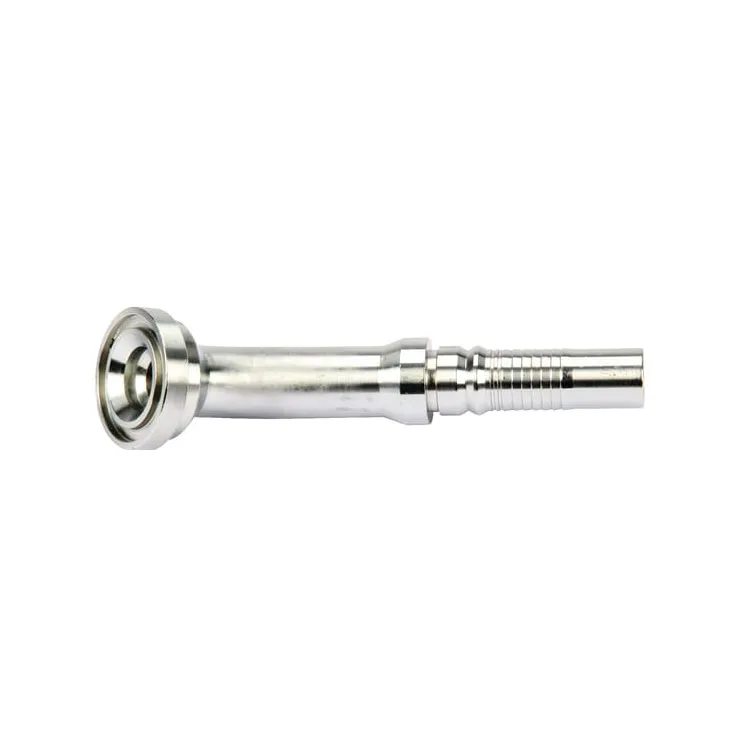

Sajūga savienojums 4SH-DN32 ar atloku ø50,8mm 45° SFLH322045G2

Name: Sajūga savienojums 4SH-DN32 ar atloku ø50,8mm 45° SFLH322045G2
Brand: Alfagomma
SKU: SFLH322045G2
Price: 44.32 EUR
Availability: InStock

Apmaksas iespējas

44,32 €

AR PVN

4-5 Darba dienas

Sajūga savienojums 4SH-DN32 ar atloku ø50,8mm 45° SFLH322045G2 Alfagomma

IR NOLIKTAVĀ

ID: 89850

Apraksts

Part number	SFLH322045G2
EAN
Unit	Each
Pros	Press-fitting with heavy-duty anti-slip protection
Product details	Alfagomma Evolution G2 Anchoring through interlock system- OVP ring or O-ring seal- Heavy-duty machines with high operating and peak pressures Hydrostatic drives Series H17 Always consult the most up to date press tables, see downloads at the bottom of each web page
Includes	Insert Without OVP-ring or O-ring
Surface treatment	Zinc-plated White passivated
Angle	45 °
Connection 2, diameter	1-1/4 Inch
Connection 2, diameter	31 mm
Connection 2, length	32.5 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 diameter	1-1/4 Inch
Connection no 1 diameter	31 mm
CConnection no 1 length	100.9 mm
Connection no 1 type code	SFL
Connection no 1 type - male/female	Male
Connection no 1 type	Flange
Flange outside diameter	50.8 mm
Flange standard pressure series	3000
ISO standard	6162
Material	Steel
Pipe diameter	32 mm
Pipe diameter	1-1/4 Inch
Shape	Elbow - 2 connection sides
