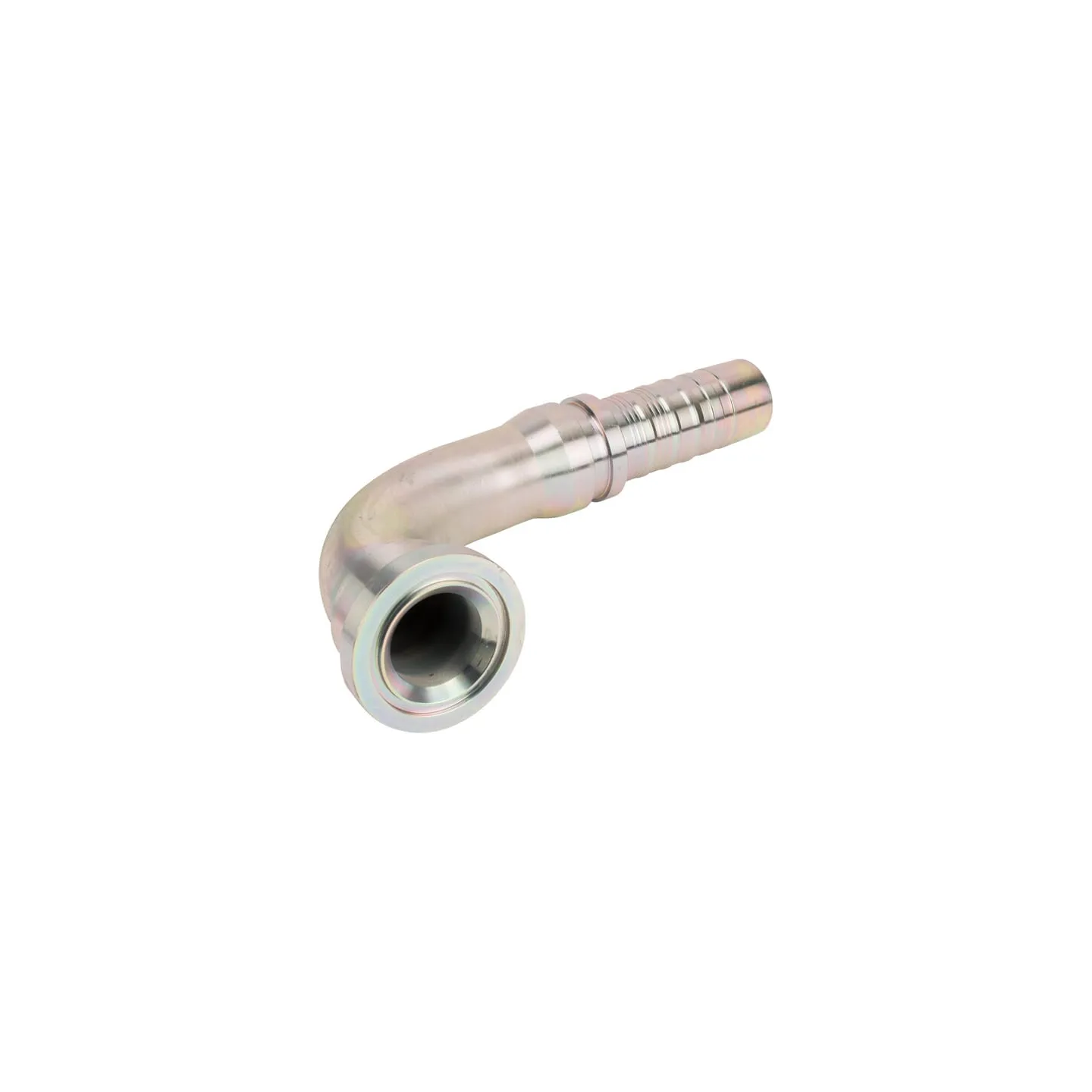

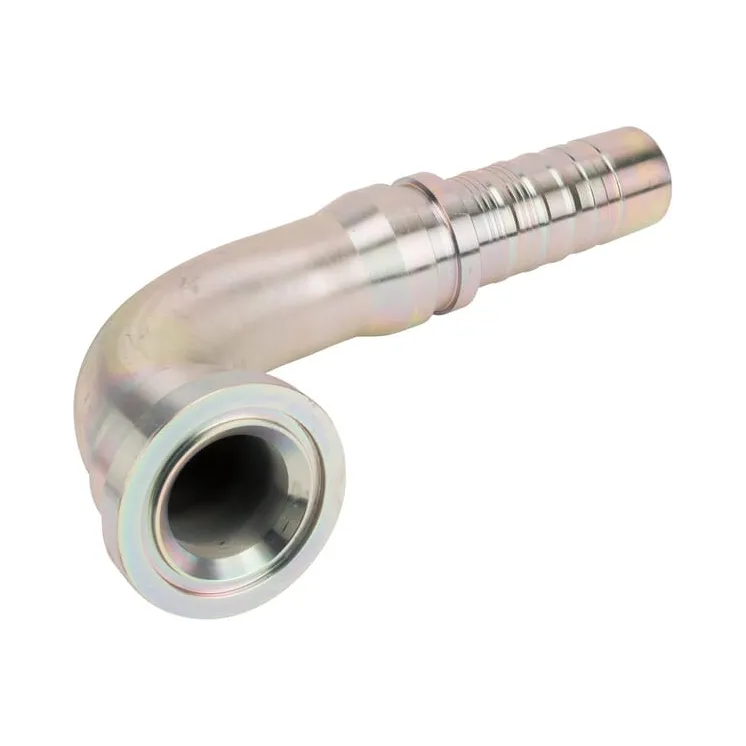

Ievietojiet NS-DN40 ar atloku 79.4 SFSNS403290

Name: Ievietojiet NS-DN40 ar atloku 79.4 SFSNS403290
Brand: Alfagomma
SKU: SFSNS403290
Price: 183.57 EUR
Availability: BackOrder

Apmaksas iespējas

183,57 €

AR PVN

Pēc pieprasījuma

Ievietojiet NS-DN40 ar atloku 79.4 SFSNS403290 Alfagomma

Uz pasūtījumu

ID: 89863

Apraksts

Part number	SFSNS403290
EAN
Unit	Each
Long description	Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros	Press fittings help ensure faster and easier hose assembly and help to save costs. Processing produces less dirt, smell and waste. No special tool needed to skive the hose.
Product details	The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses. With these press fittings, there is no need to skive the inner and outer casing.
Angle	90 °
Connection 2, centre to end distance	121.5 mm
Connection 2, diameter	1-1/2 Inch
Connection 2, diameter	40 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection centre to insert distance	118.4 mm
Connection no 1 diameter	79.4 mm
Connection no 1 type - male/female	Male
Connection no 1 type	Flange
Flange standard pressure series	6000
Max working pressure	414 BAR
Original number equivalent	H1343690-243200
Shape	Elbow - 2 connection sides
