Ievietojiet NS-DN50 ar atloku 71,4 m SFLNS503245

Name: Ievietojiet NS-DN50 ar atloku 71,4 m SFLNS503245
Brand: Alfagomma
SKU: SFLNS503245
Price: 167.52 EUR
Availability: BackOrder

Apmaksas iespējas

167,52 €

AR PVN

Pēc pieprasījuma

Ievietojiet NS-DN50 ar atloku 71,4 m SFLNS503245 Alfagomma

Uz pasūtījumu

ID: 89872

Apraksts

Part number	SFLNS503245
EAN
Unit	Each
Long description	Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros	Press fittings help ensure faster and easier hose assembly and help to save costs. Processing produces less dirt, smell and waste. No special tool needed to skive the hose.

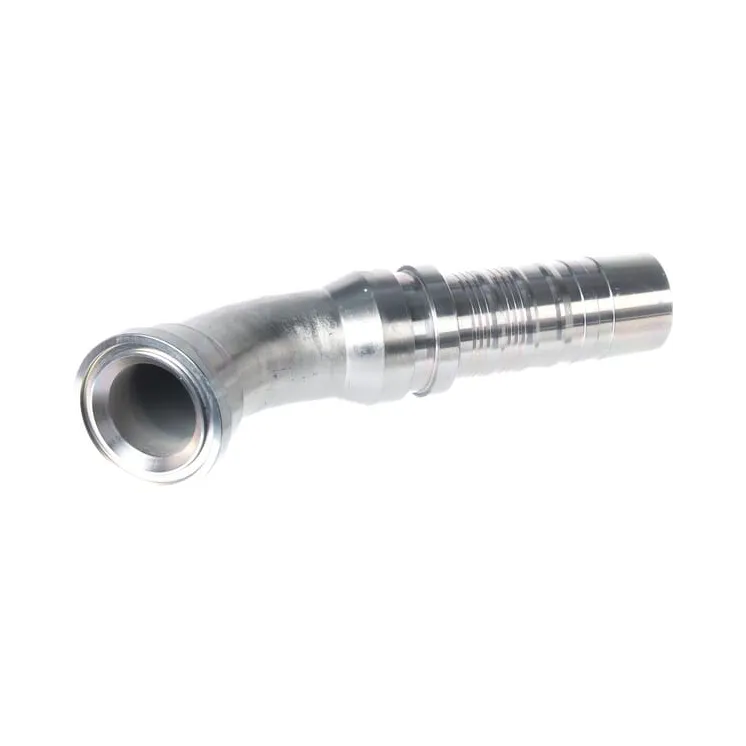

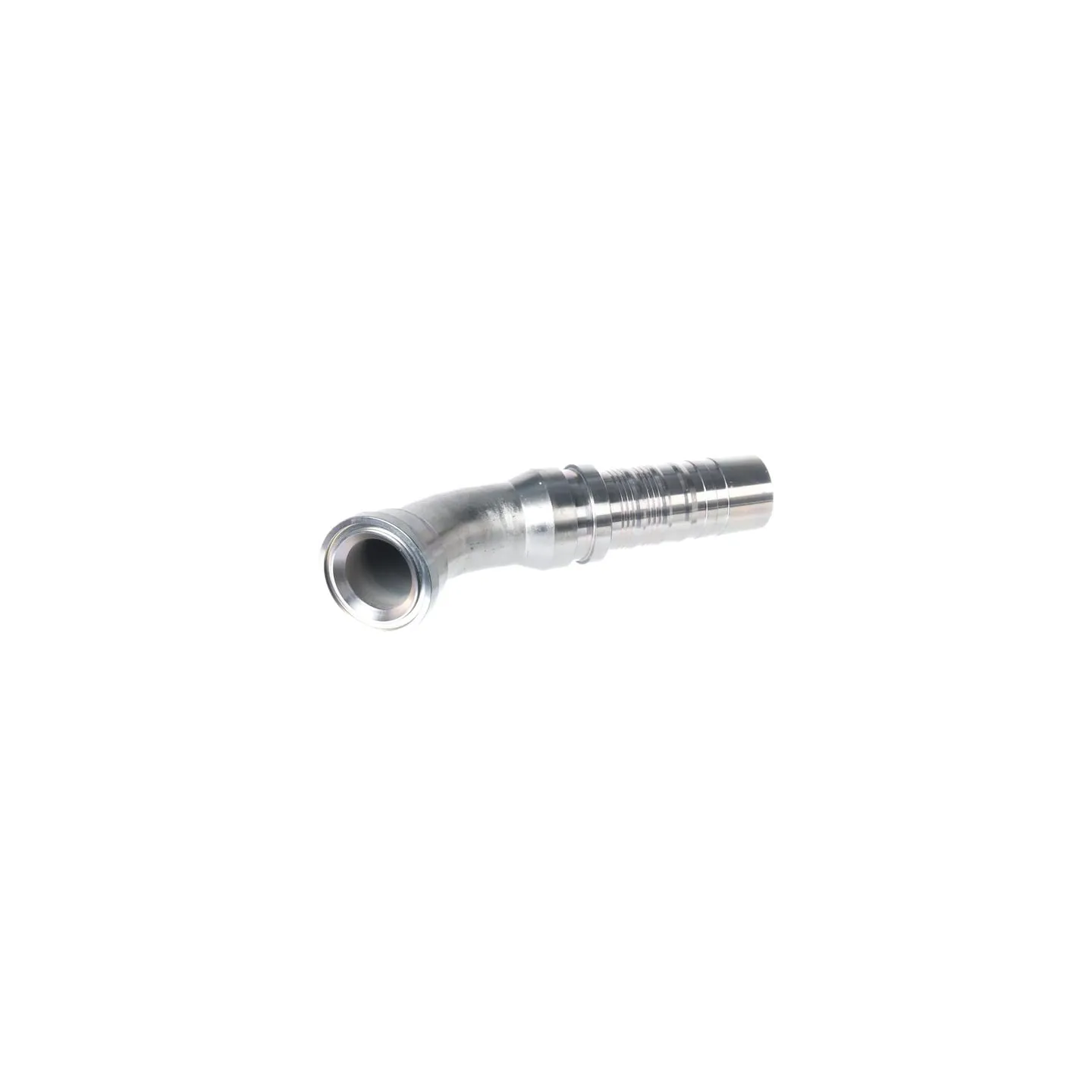

Product details	The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses. With these press fittings, there is no need to skive the inner and outer casing.
Angle	45 °
Connection 2, diameter	2 Inch
Connection 2, diameter	50 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 center to end distance	154 mm
Connection no 1 diameter	2 Inch
DConnection no 1 length	54 mm
Connection no 1 type - male/female	Male
Connection no 1 type	Flange
FDFlange outside diameter	71.4 mm
Flange standard pressure series	3000
Max working pressure	345 BAR
Original number equivalent	H1343340-323200
Shape	Elbow - 2 connection sides
