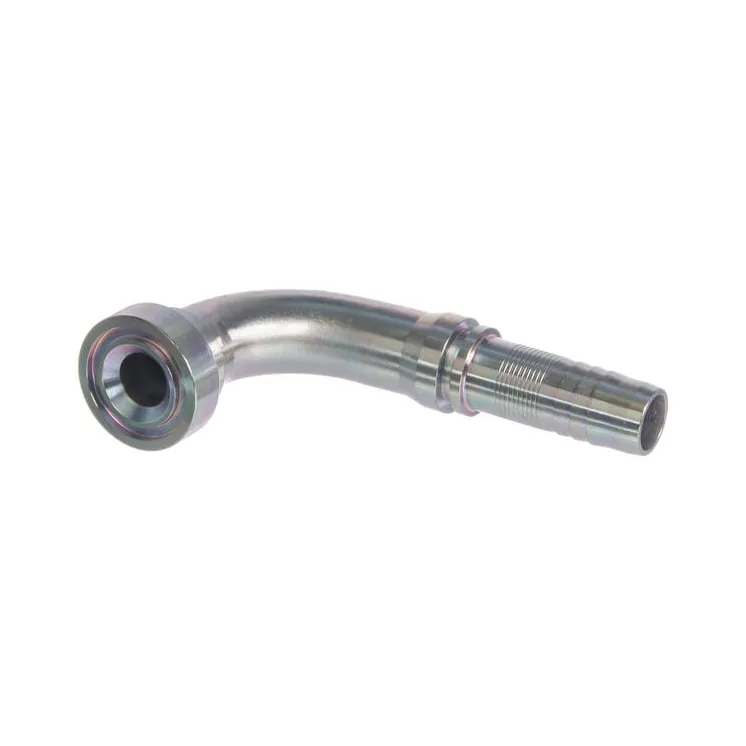

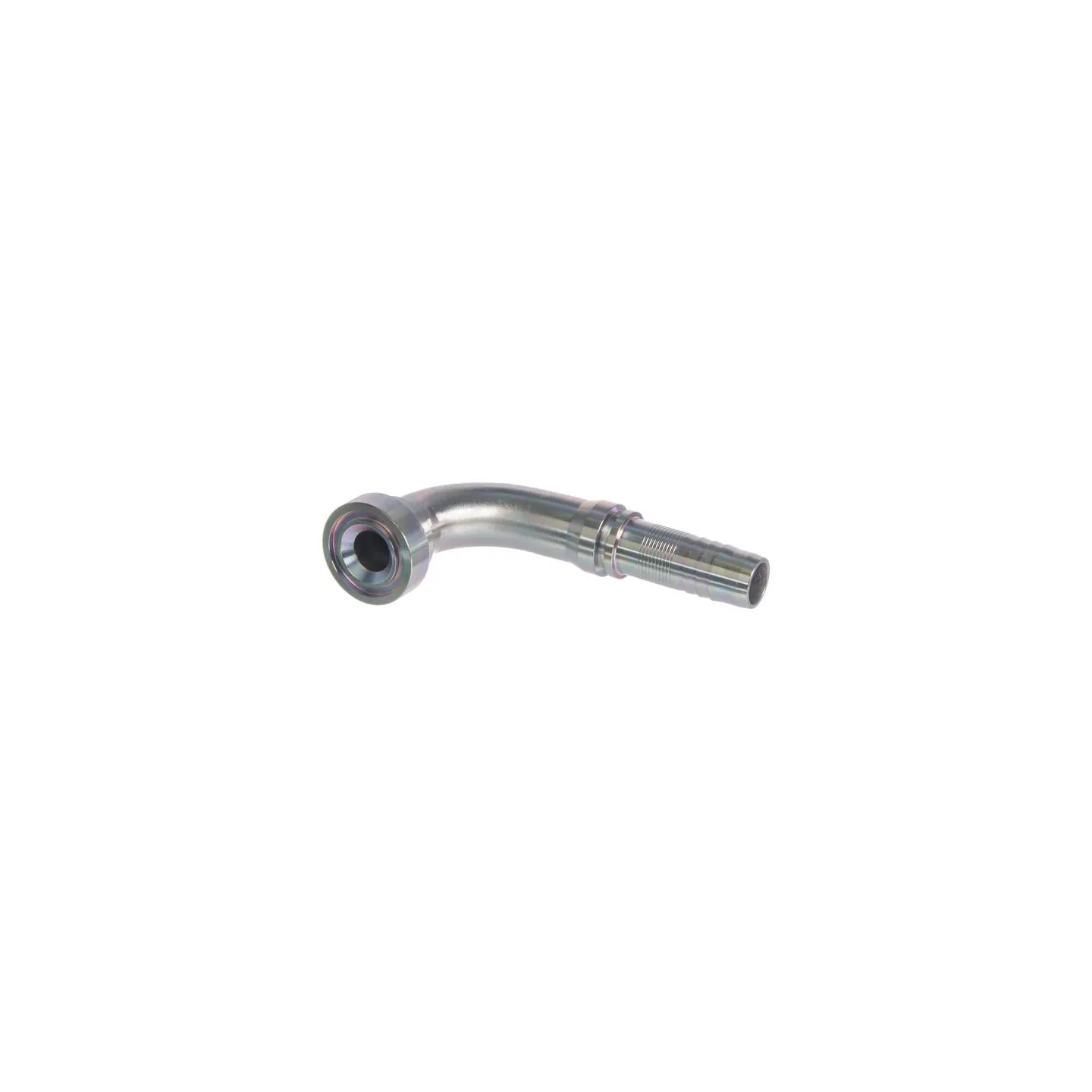

Ievietojiet NS DN25 atloku 47.6, kas piemērots CAT SFSCNS251690

Name: Ievietojiet NS DN25 atloku 47.6, kas piemērots CAT SFSCNS251690
Brand: Alfagomma
SKU: SFSCNS251690
Price: 63.69 EUR
Availability: BackOrder

Apmaksas iespējas

63,69 €

AR PVN

Pēc pieprasījuma

Ievietojiet NS DN25 atloku 47.6, kas piemērots CAT SFSCNS251690 Alfagomma

Uz pasūtījumu

ID: 89895

Apraksts

Part number	SFSCNS251690
EAN
Unit	Each
Long description	Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros	Press fittings help ensure faster and easier hose assembly and help to save costs. Processing produces less dirt, smell and waste. No special tool needed to skive the hose.
Product details	The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses. With these press fittings, there is no need to skive the inner and outer casing.
Angle	90 °
Connection 2, diameter	1 Inch
Connection 2, diameter	25 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 center to end distance	84.8 mm
Connection no 1 diameter	1 Inch
Connection no 1 length	79 mm
Connection no 1 type - male/female	Male
Connection no 1 type	Flange
Flange outside diameter	47.6 mm
Original number equivalent	H1343990-161600
Shape	Elbow - 2 connection sides
