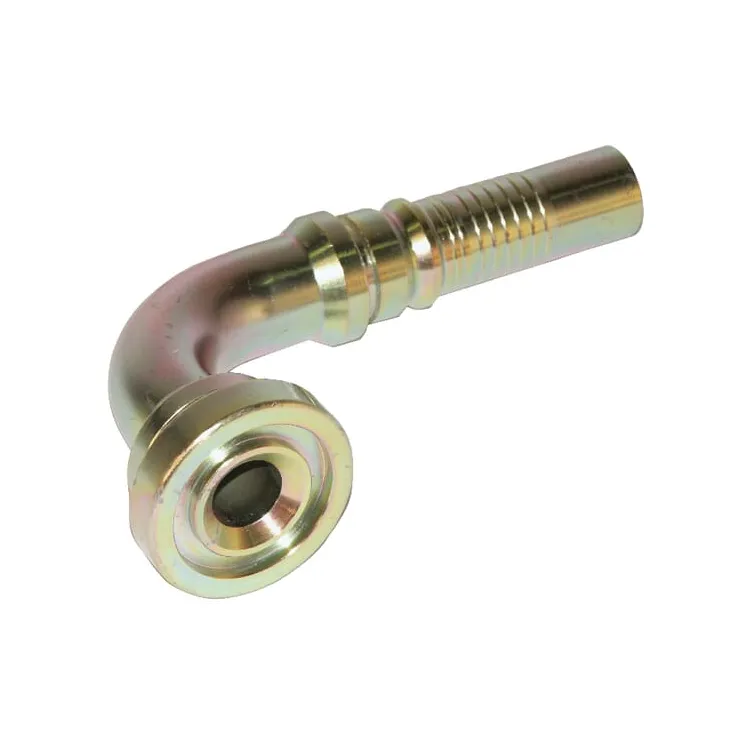

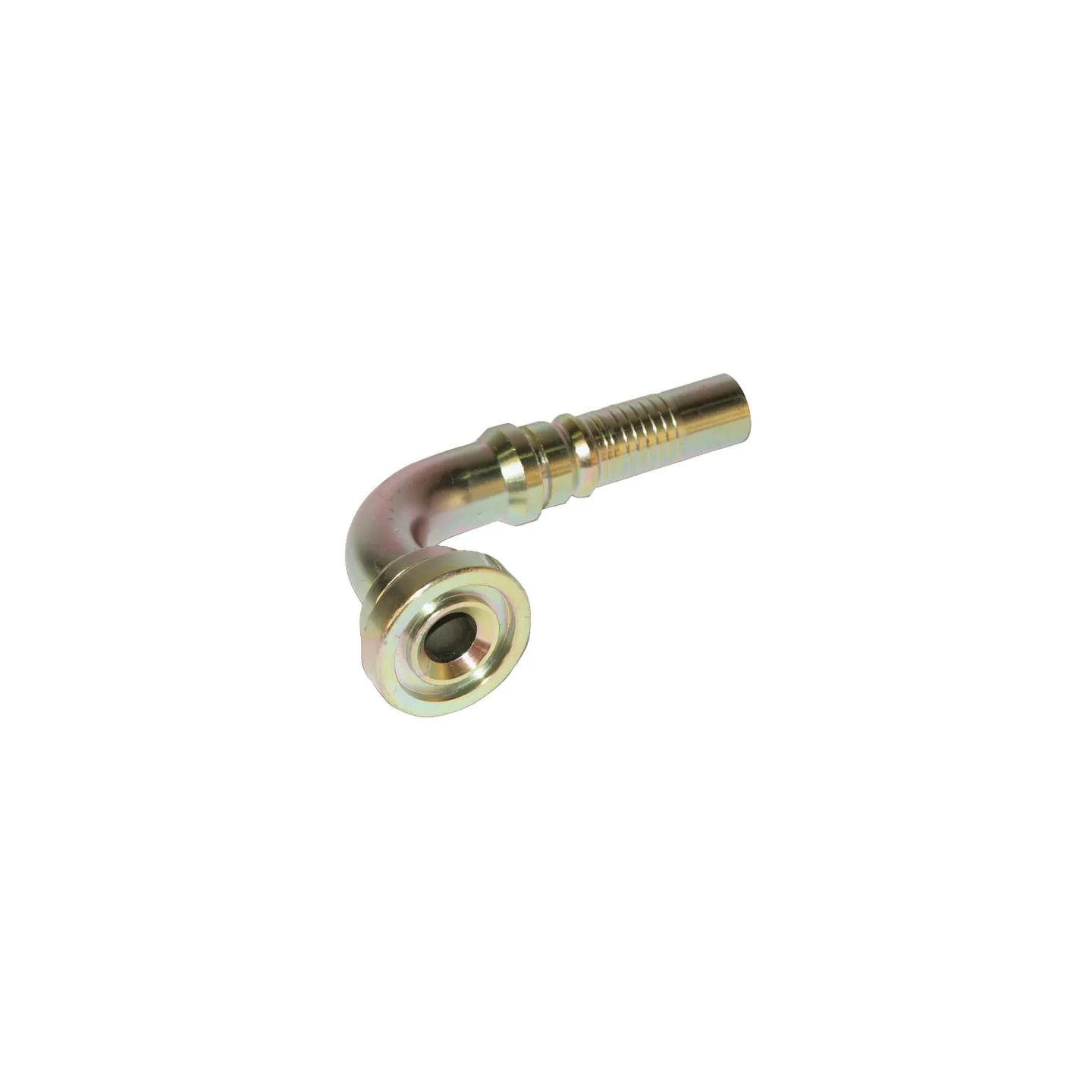

Ieliktnis 4SH-DN20 atloks 41.3mm-90° piemērots CAT SFSCH201290

Name: Ieliktnis 4SH-DN20 atloks 41.3mm-90° piemērots CAT SFSCH201290
Brand: Alfagomma
SKU: SFSCH201290
Price: 32.45 EUR
Availability: InStock

Apmaksas iespējas

32,45 €

AR PVN

4-5 Darba dienas

Ieliktnis 4SH-DN20 atloks 41.3mm-90° piemērots CAT SFSCH201290 Alfagomma

IR NOLIKTAVĀ

ID: 89954

Apraksts

Part number	SFSCH201290
EAN
Unit	Each
Pros	Press-fitting with heavy-duty anti-slip protection
Product details	Anchoring by means of interlock system OVP-ring or O-ring seal Caterpillar machines Series H14
Includes	Insert Without OVP-ring or O-ring
Long description	Application range: Caterpillar machinery Benefits: Press-fitting with heavy-duty anti-slip protection Consists of: Swage coupling Without OVP ring or O-ring Details: Anc
Surface treatment	Zinc-plated White passivated
Angle	90 °
DConnection 2, centre to end distance	67 mm
Connection 2, diameter	3/4 Inch
Connection 2, diameter	20 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	63.7 mm
FDConnection no 1 diameter	41.3 mm
Connection no 1 type code	CAT
Connection no 1 type - male/female	Male
Connection no 1 type	Flange
Flange standard pressure series	6000
Material	Steel
Original number equivalent	H1443990-121200
Shape	Elbow - 2 connection sides
