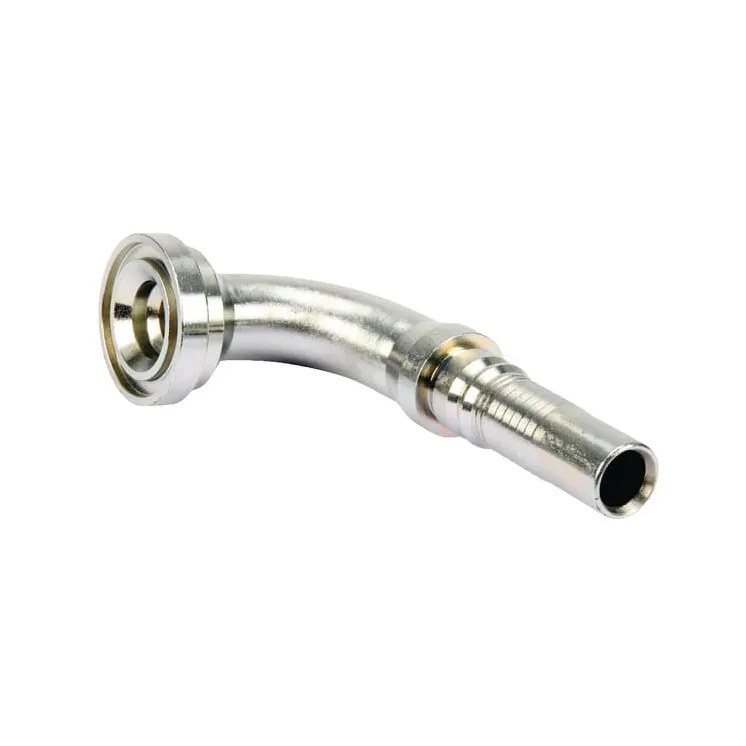

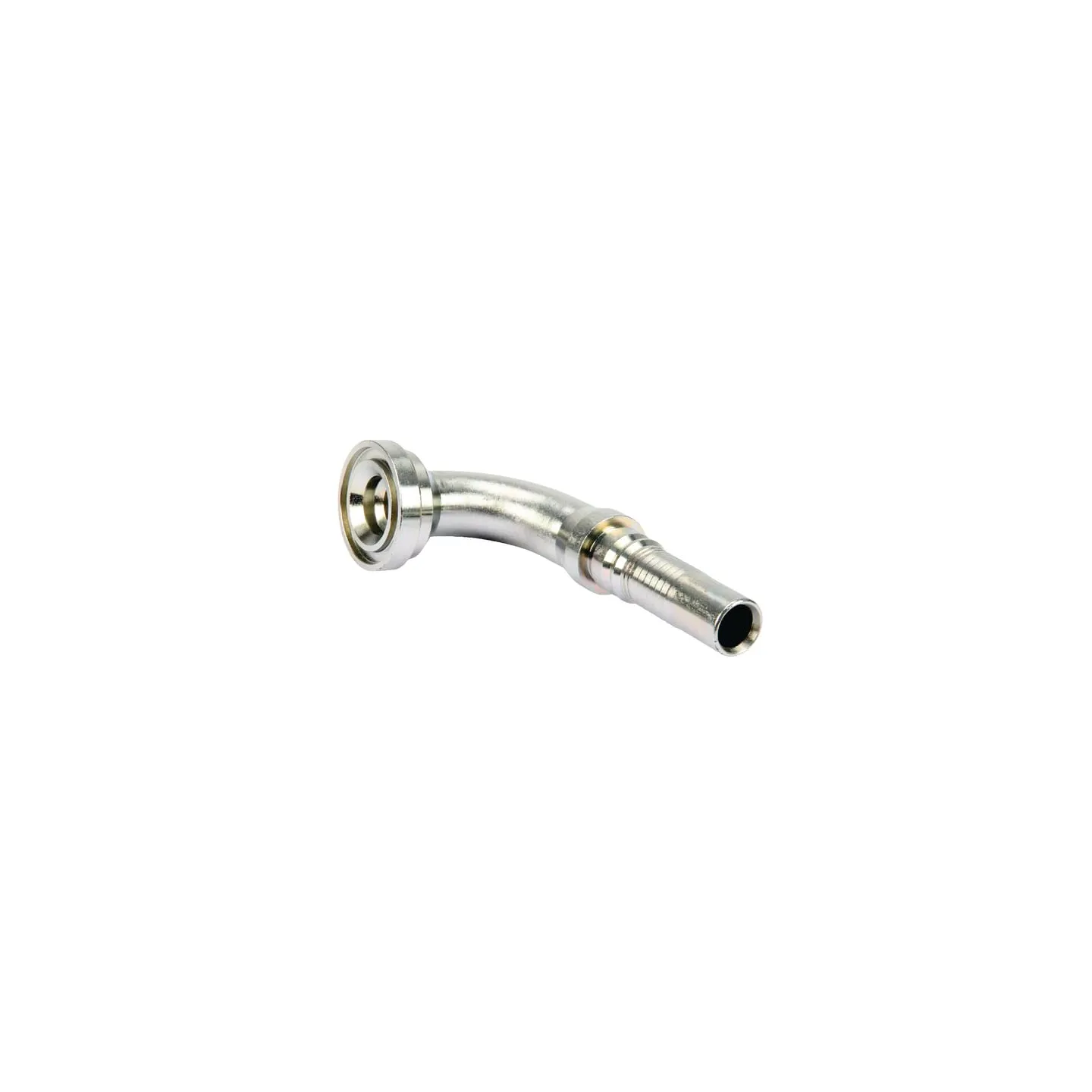

Sajūga savienojums 4SH-DN20 ar atloku ø41,3mm 90° H115 SFSH201290H115G2

Name: Sajūga savienojums 4SH-DN20 ar atloku ø41,3mm 90° H115 SFSH201290H115G2
Brand: Alfagomma
SKU: SFSH201290H115G2
Price: 108.23 EUR
Availability: InStock

Apmaksas iespējas

108,23 €

AR PVN

4-5 Darba dienas

Sajūga savienojums 4SH-DN20 ar atloku ø41,3mm 90° H115 SFSH201290H115G2 Alfagomma

IR NOLIKTAVĀ

ID: 89971

Apraksts

Part number	SFSH201290H115G2
EAN
Unit	Each
Pros	Press-fitting with heavy-duty anti-slip protection
Product details	Alfagomma Evolution G2 Anchoring by means of interlock system OVP-ring or O-ring seal Heavy duty machines with high operating and peak pressures Hydrostatic drives Series H17 Always consult the most up to date press tables, see downloads at the bottom of each web page
Benefits	Press-fitting with heavy-duty anti-slip protection
Includes	Insert Without OVP-ring or O-ring
Surface treatment	Zinc-plated White passivated
Angle	90 °
HConnection 2, centre to end distance	115 mm
Connection 2, diameter	1-1/2 Inch
Connection 2, diameter	38 mm
Connection 2, length	115 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	63.2 mm
Connection no 1 diameter	3/4 Inch
DConnection no 1 diameter	20 mm
Connection no 1 type code	SFS
Connection no 1 type - male/female	Male
Connection no 1 type	Flange
Flange outside diameter	41.3 mm
Flange standard pressure series	6000
ISO standard	6162
Material	Steel
Pipe diameter	20 mm
Pipe diameter	3/4 Inch
Shape	Elbow - 2 connection sides
