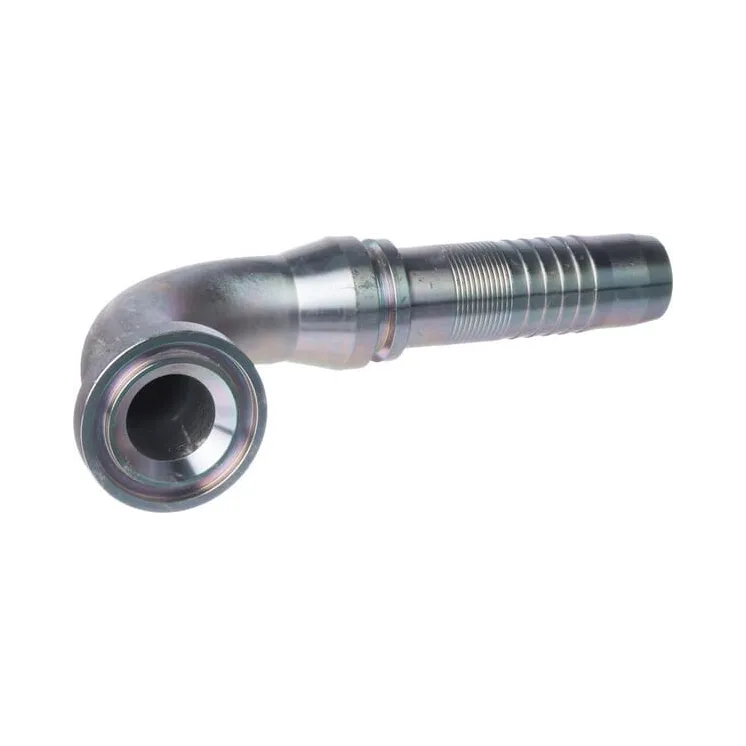

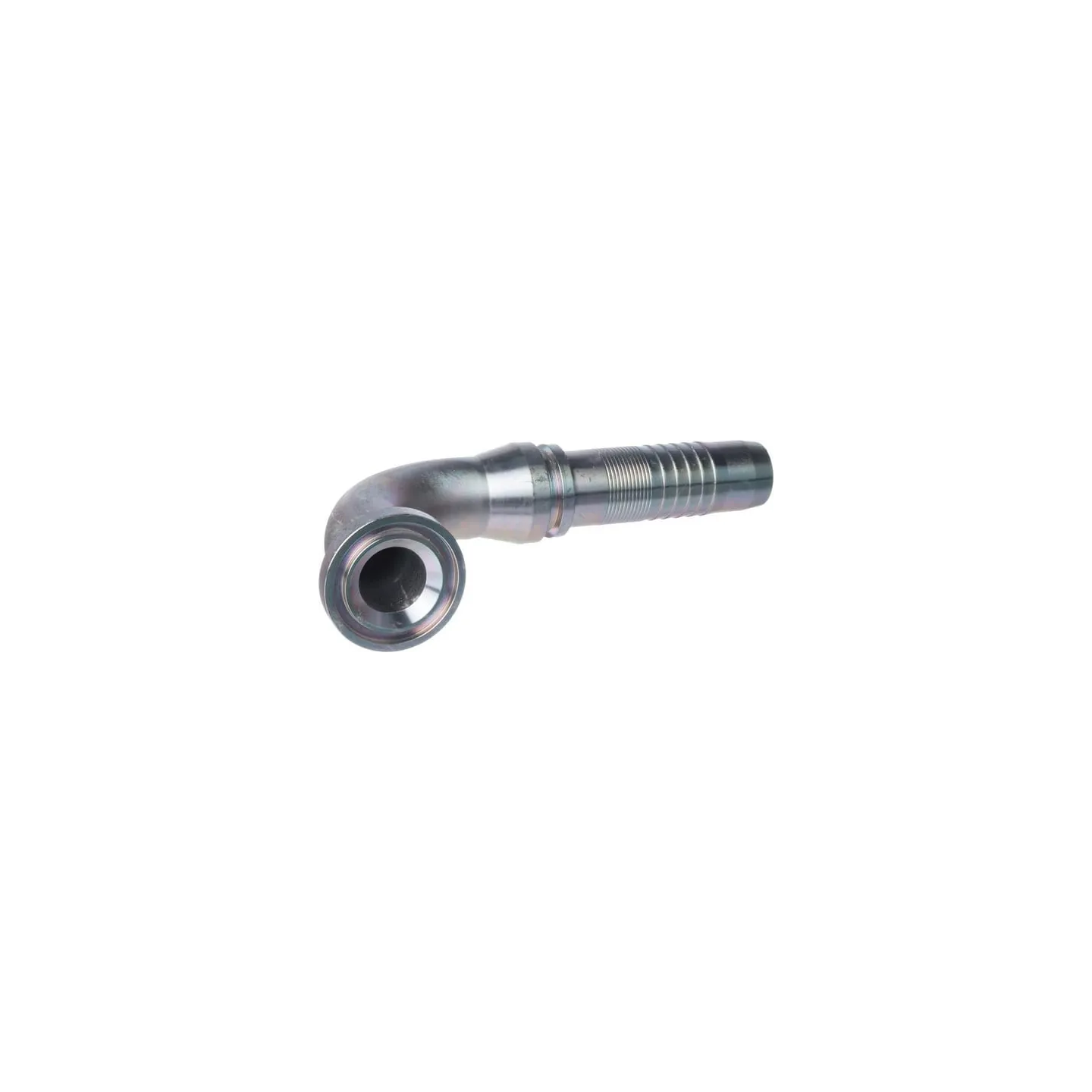

Ievietojiet NS-DN32 ar atloku 50.8 SFLNS322090

Name: Ievietojiet NS-DN32 ar atloku 50.8 SFLNS322090
Brand: Alfagomma
SKU: SFLNS322090
Price: 60.83 EUR
Availability: BackOrder

Apmaksas iespējas

60,83 €

AR PVN

Pēc pieprasījuma

Ievietojiet NS-DN32 ar atloku 50.8 SFLNS322090 Alfagomma

Uz pasūtījumu

ID: 89988

Apraksts

Part number	SFLNS322090
EAN
Unit	Each
Long description	Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros	Press fittings help ensure faster and easier hose assembly and help to save costs. Processing produces less dirt, smell and waste. No special tool needed to skive the hose.
Product details	The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses. With these press fittings, there is no need to skive the inner and outer casing.
Angle	90 °
DConnection 2, centre to end distance	93 mm
Connection 2, diameter	1-1/4 Inch
Connection 2, diameter	32 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	103 mm
FDConnection no 1 diameter	50.8 mm
Connection no 1 type - male/female	Male
Connection no 1 type	Flange
Flange standard pressure series	3000
Max working pressure	345 BAR
Original number equivalent	H1343390-202000
Shape	Elbow - 2 connection sides
