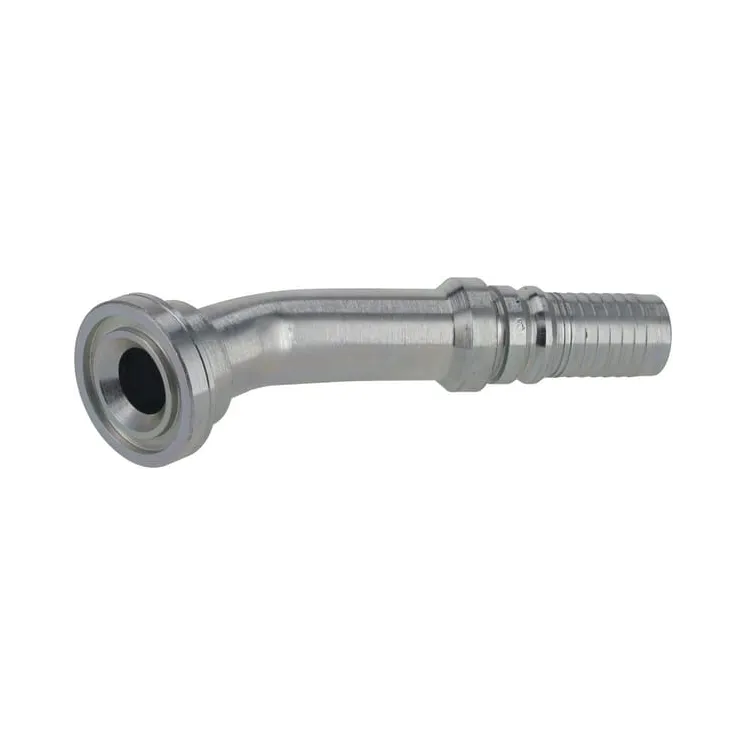

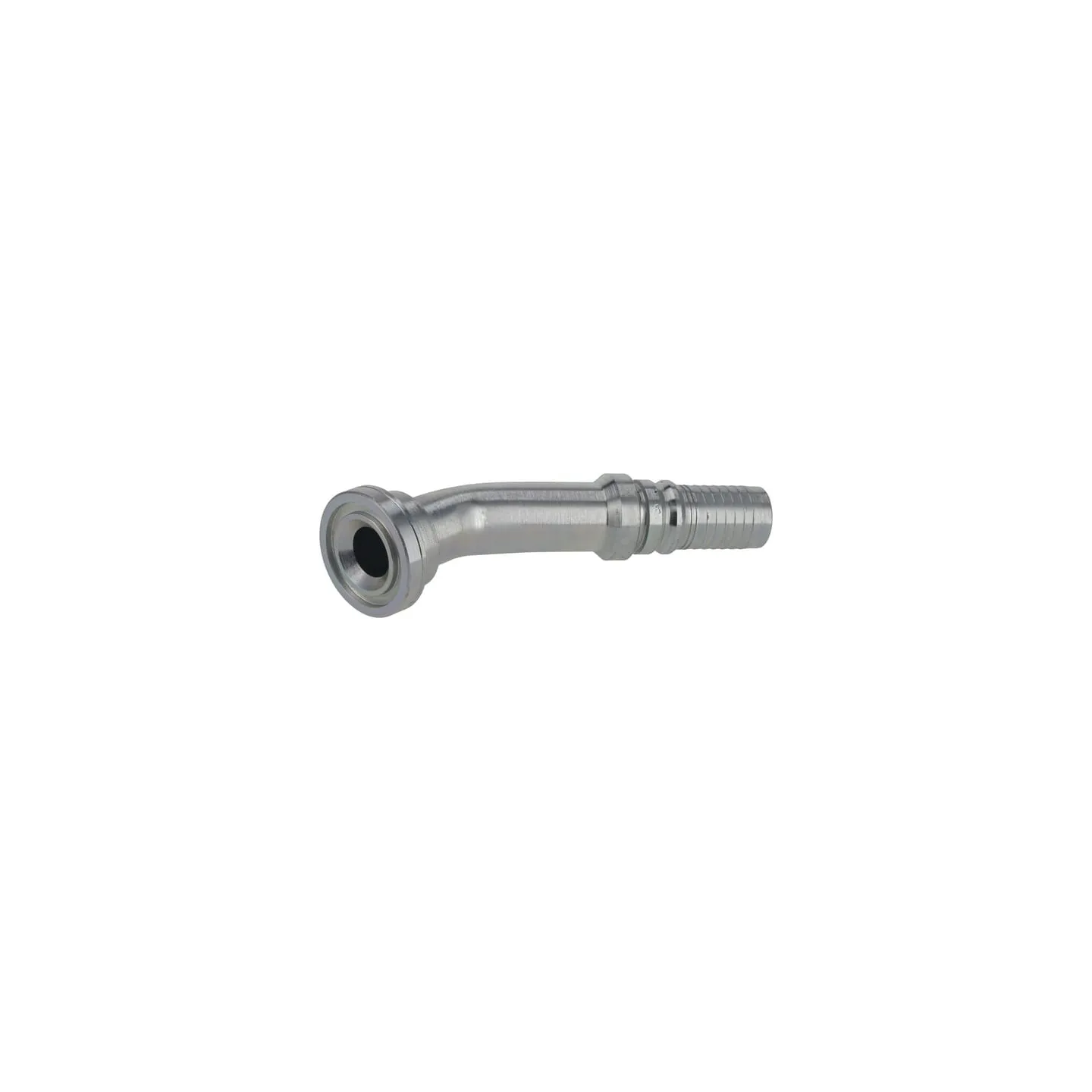

Sajūga savienojums 4SH-DN25 ar atloku ø47,6mm 30° SFSH251630G2

Name: Sajūga savienojums 4SH-DN25 ar atloku ø47,6mm 30° SFSH251630G2
Brand: Alfagomma
SKU: SFSH251630G2
Price: 37.55 EUR
Availability: InStock

Apmaksas iespējas

37,55 €

AR PVN

4-5 Darba dienas

Sajūga savienojums 4SH-DN25 ar atloku ø47,6mm 30° SFSH251630G2 Alfagomma

IR NOLIKTAVĀ

ID: 89989

Apraksts

Part number	SFSH251630G2
EAN
Unit	Each
Pros	Press-fitting with heavy-duty anti-slip protection
Product details	Alfagomma Evolution G2 Anchoring by means of interlock system OVP-ring or O-ring seal Heavy duty machines with high operating and peak pressures Hydrostatic drives Series H17 Always consult the most up to date press tables, see downloads at the bottom of each web page
Includes	Insert Without OVP-ring or O-ring
Connection 2, diameter	1 Inch
Connection 2, diameter	25 mm
Connection 2, length	30 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 diameter	1 Inch
DConnection no 1 diameter	25 mm
Connection no 1 length	114 mm
Connection no 1 type - male/female	Male
Connection no 1 type	Flange
Flange outside diameter	47.6 mm
Pipe diameter	25 mm
Pipe diameter	1 Inch
Shape	Straight - 2 connection sides
