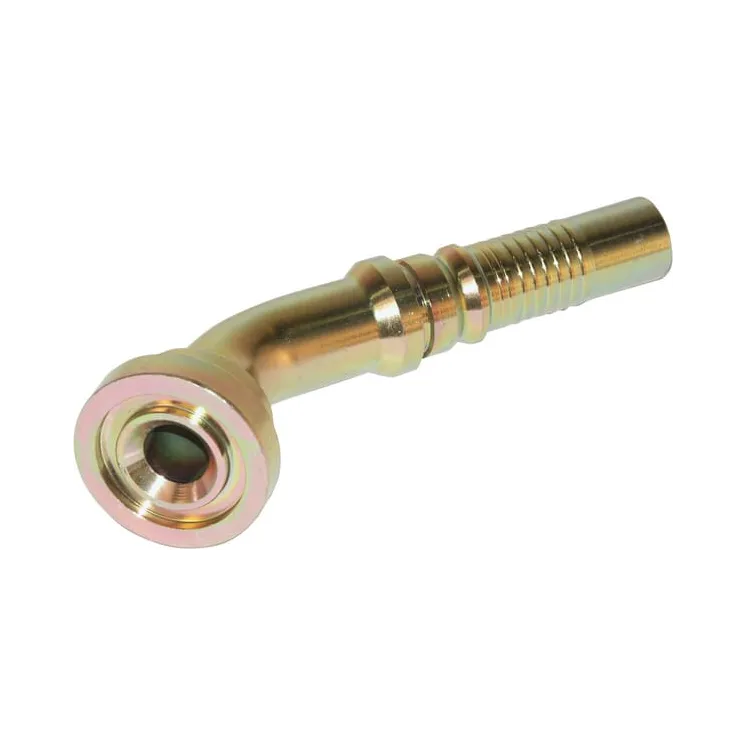

Ievietojiet 4SH-DN25 ar atloku 54,0 mm-45° SFSH252045

Name: Ievietojiet 4SH-DN25 ar atloku 54,0 mm-45° SFSH252045
Brand: Alfagomma
SKU: SFSH252045
Price: 38.02 EUR
Availability: InStock

Apmaksas iespējas

38,02 €

AR PVN

4-5 Darba dienas

Ievietojiet 4SH-DN25 ar atloku 54,0 mm-45° SFSH252045 Alfagomma

IR NOLIKTAVĀ

ID: 90042

Apraksts

Part number	SFSH252045
EAN
Unit	Each
Long description	SAE flange 6000 PSI 45°
Pros	Press-fitting with heavy-duty anti-slip protection
Product details	Anchoring by means of interlock system OVP-ring or O-ring seal- Heavy-duty machines with high operating and peak pressures Hydrostatic drives Series H14
Includes	Insert Without OVP-ring or O-ring
Surface treatment	Zinc-plated White passivated
Angle	45 °
HConnection 2, centre to end distance	44 mm
Connection 2, diameter	1 Inch
Connection 2, diameter	25 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection centre to insert distance	91.3 mm
DConnection no 1 diameter	54 mm
Connection no 1 type code	SFS
Connection no 1 type - male/female	Male
Connection no 1 type	Flange
Flange standard pressure series	6000
ISO standard	6162
Material	Steel
Original number equivalent	H1443640-162000
Shape	Elbow - 2 connection sides
