Ievietojiet NS-DN20 ar atloku 41.3 SFSNS2012

Name: Ievietojiet NS-DN20 ar atloku 41.3 SFSNS2012
Brand: Alfagomma
SKU: SFSNS2012
Price: 17.28 EUR
Availability: InStock

Apmaksas iespējas

17,28 €

AR PVN

4-5 Darba dienas

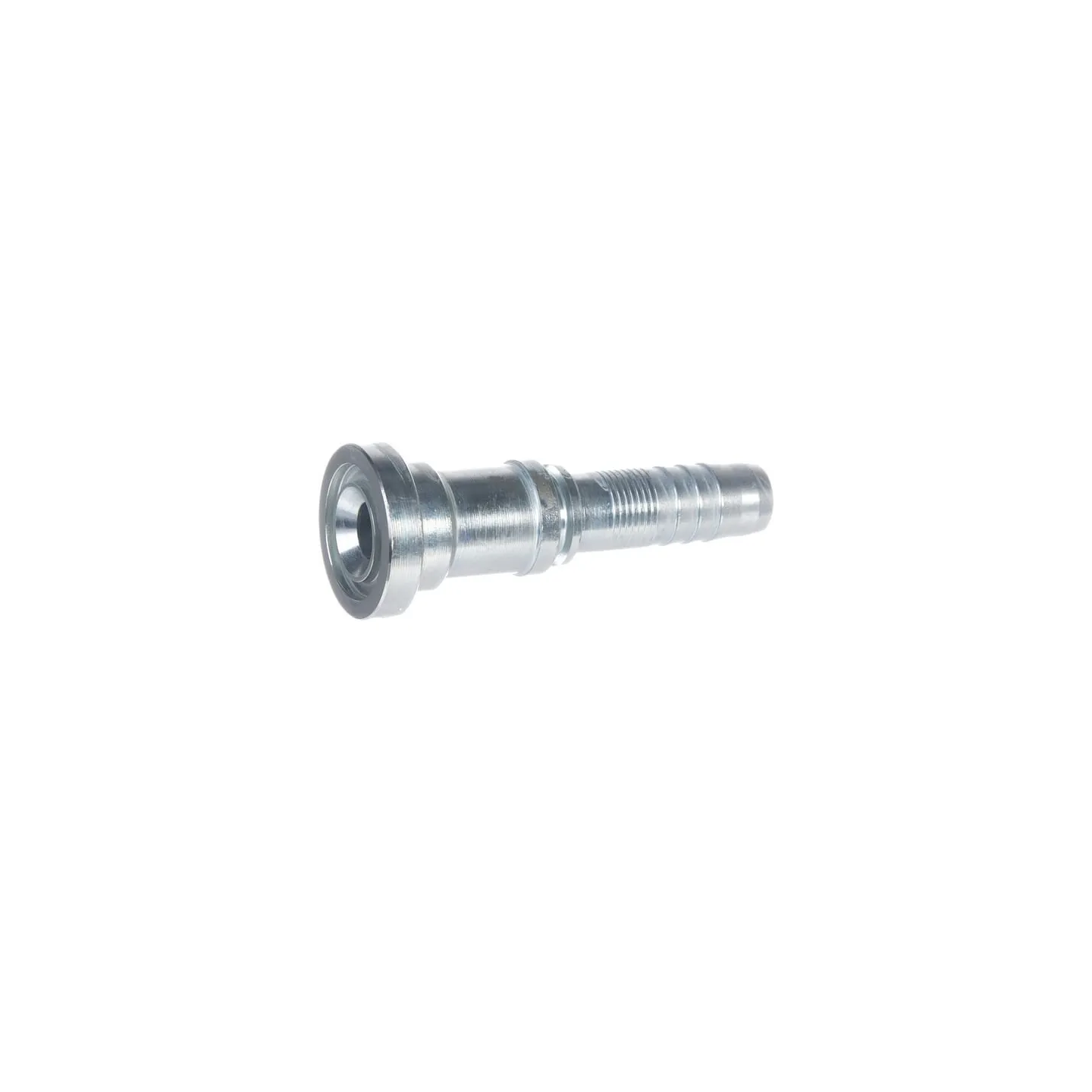

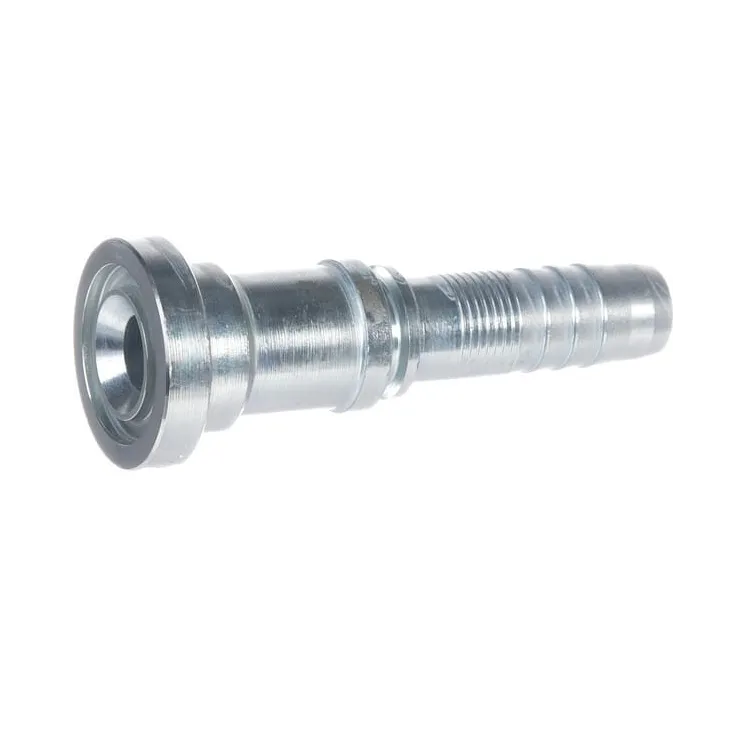

Ievietojiet NS-DN20 ar atloku 41.3 SFSNS2012 Alfagomma

IR NOLIKTAVĀ

ID: 90065

Apraksts

Part number	SFSNS2012
EAN
Unit	Each
Long description	Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros	Press fittings help ensure faster and easier hose assembly and help to save costs. Processing produces less dirt, smell and waste. No special tool needed to skive the hose.
Product details	The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses. With these press fittings, there is no need to skive the inner and outer casing.
Connection 2, diameter	3/4 Inch
Connection 2, diameter	20 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
CConnection no 1 center to end distance	53.5 mm
Connection no 1 diameter	3/4 Inch
Connection no 1 type - male/female	Male
Connection no 1 type	Flange
FDFlange outside diameter	41.3 mm
Flange standard pressure series	6000
Max working pressure	415 BAR
Shape	Straight - 2 connection sides
