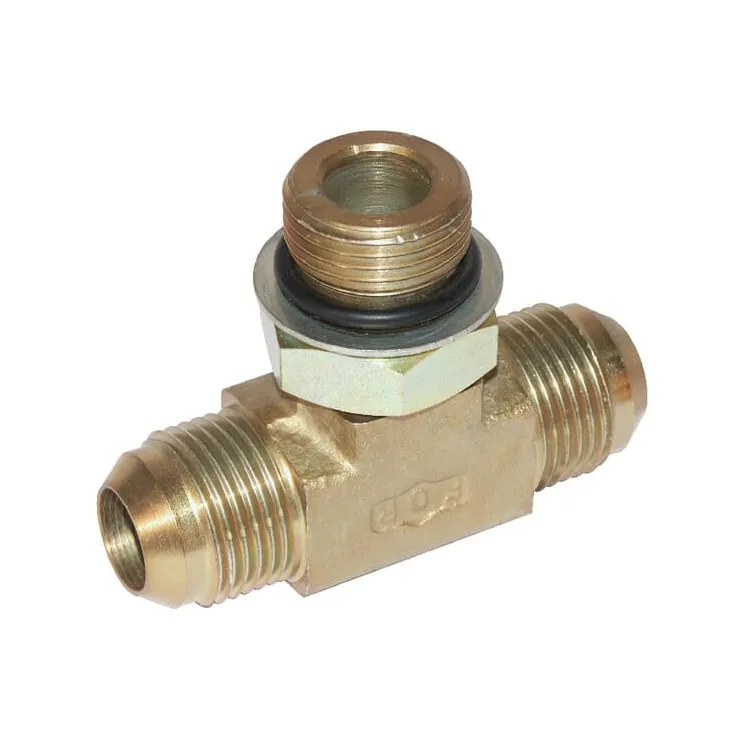

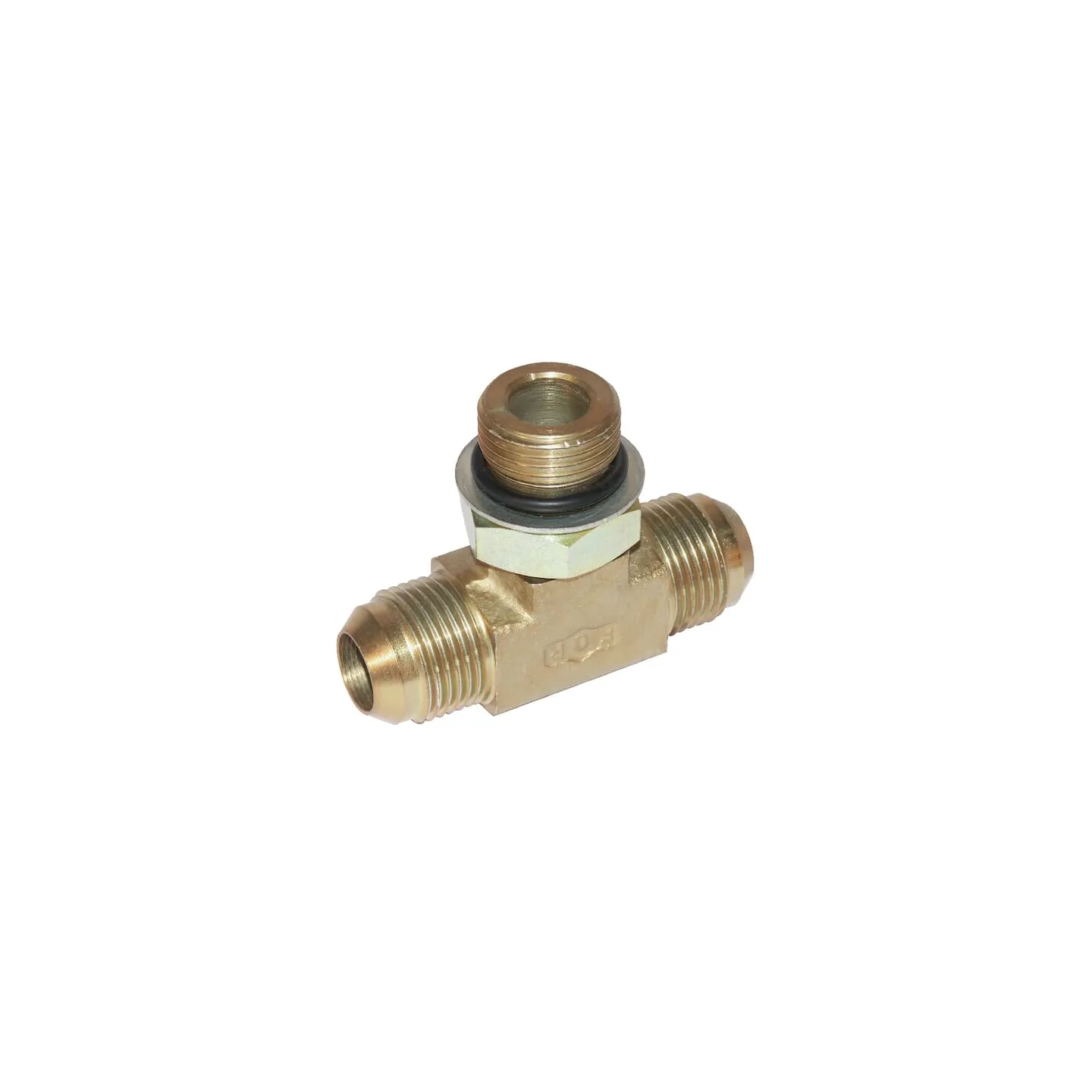

T veida tapa 9/16 UNF x 9/16 JIC TIU0909

Name: T veida tapa 9/16 UNF x 9/16 JIC TIU0909
Brand: Alfagomma
SKU: TIU0909
Price: 12.75 EUR
Availability: InStock

Apmaksas iespējas

12,75 €

AR PVN

4-5 Darba dienas

T veida tapa 9/16 UNF x 9/16 JIC TIU0909 Alfagomma

IR NOLIKTAVĀ

ID: 90249

Apraksts

Part number	TIU0909
EAN
Unit	Each
Product details	For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514 Connection thread on the 37º cone side is UNF in accordance with ANSI
Connection no 1 thread type	UNF
F1Connection no 1 thread diameter	9/16 Inch
Connection 2, thread type	UNF
F1Connection 2, thread diameter	9/16 Inch
Connection 3, thread type	UNF
Shape	Tee (T) - 3 connections
Connection no 1 type	Thread
CH1Connection no 1 wrench size	14.0 mm
Connection 2, type	Thread
Connection 3, type	Thread
F2Connection 3, thread diameter	9/16 Inch
CH2Connection 3, wrench size	19.0 mm
L2Connection no 1 center to end distance	30.2 mm
L1Connection centre to insert distance	27.5 mm
Pipe diameter	3/8 Inch
Pipe diameter	10 mm
Material	Steel
Surface treatment	Galvanised
Working pressure	380 BAR
