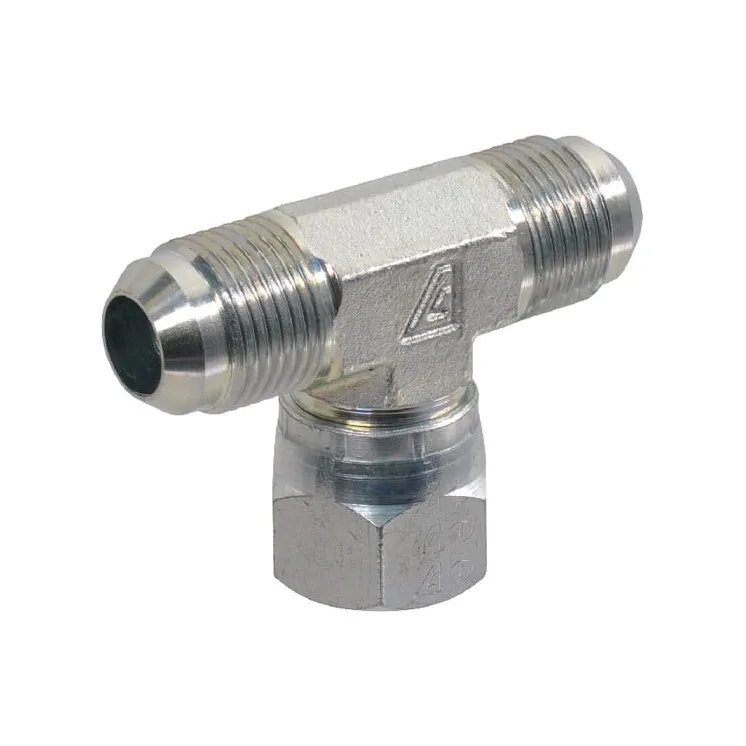

T veida radze M/M/F 9/16 JIC TOU09

Name: T veida radze M/M/F 9/16 JIC TOU09
Brand: Alfagomma
SKU: TOU09
Price: 10.99 EUR
Availability: InStock

Apmaksas iespējas

10,99 €

AR PVN

4-5 Darba dienas

T veida radze M/M/F 9/16 JIC TOU09 Alfagomma

IR NOLIKTAVĀ

ID: 90251

Apraksts

Part number	TOU09
EAN
Unit	Each
Long description	Technical information: For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514. Cone acc. To UNF ANSI.
Connection no 1 thread type	UNF
FConnection no 1 thread diameter	9/16 Inch
Connection 2, thread type	UNF
FConnection 2, thread diameter	9/16 Inch
Connection 3, thread type	UNF
Shape	Tee (T) - 3 connections
Connection no 1 type	Thread
CH1Connection no 1 wrench size	14.0 mm
Connection 2, type	Thread
Connection 3, type	Thread
FConnection 3, thread diameter	9/16 Inch
CH2Connection 3, wrench size	19.0 mm
L2Connection no 1 center to end distance	32 mm
L1Connection centre to insert distance	27 mm
D1Pipe diameter	3/8 Inch
Pipe diameter	10 mm
Material	Steel
Surface treatment	Galvanised
Working pressure	380 BAR
