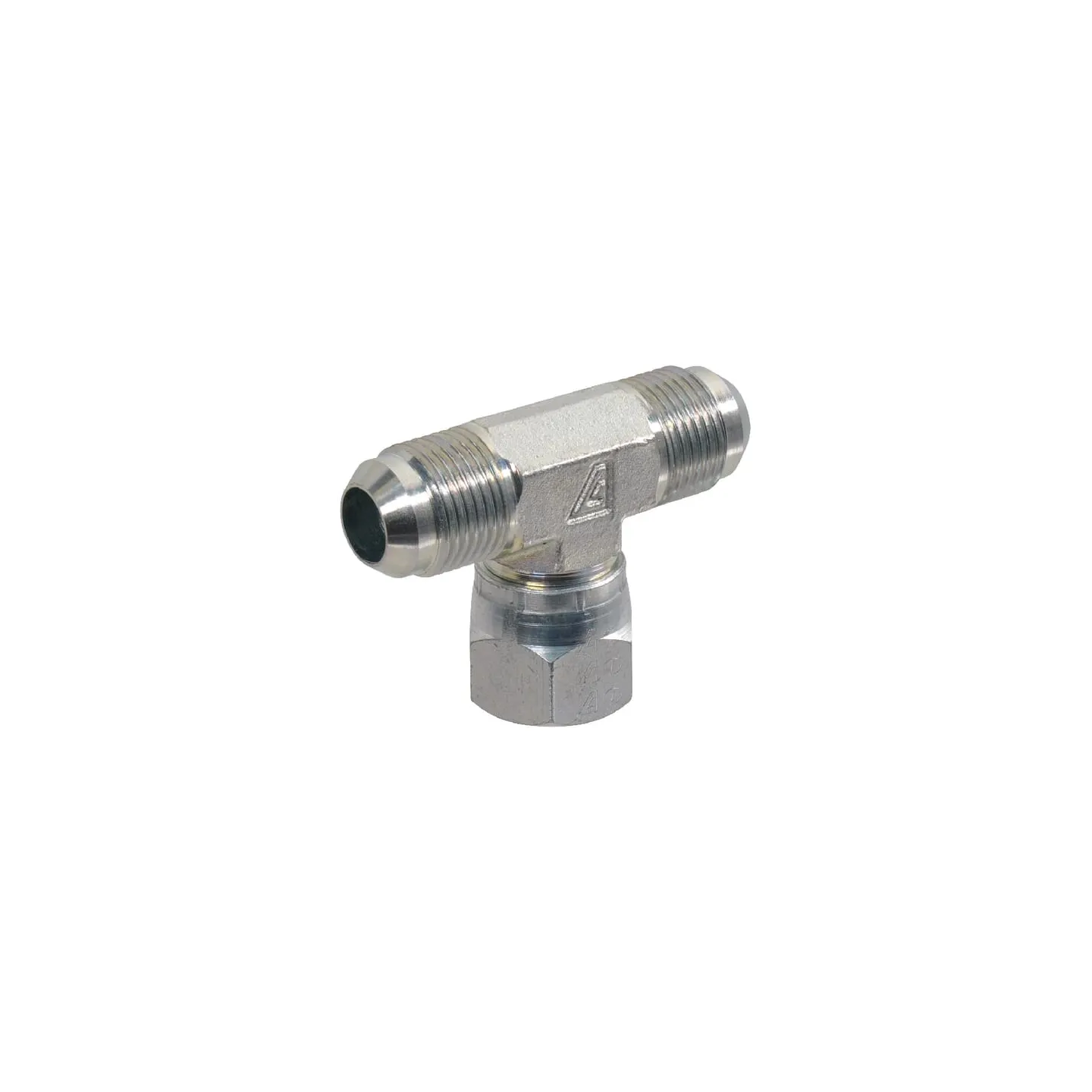

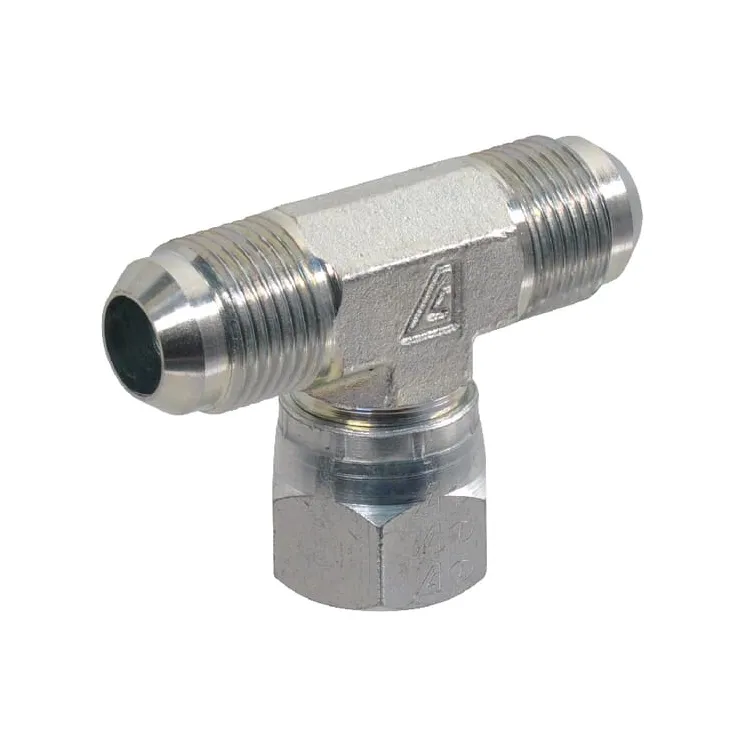

T veida tapas M/M/F 3/4 JIC TOU12 TJ12MMFBH

Name: T veida tapas M/M/F 3/4 JIC TOU12 TJ12MMFBH
Brand: Alfagomma
SKU: TOU12
Price: 19.24 EUR
Availability: InStock

Apmaksas iespējas

19,24 €

AR PVN

4-5 Darba dienas

T veida tapas M/M/F 3/4 JIC TOU12 Alfagomma TJ12MMFBH

IR NOLIKTAVĀ

ID: 90259

Apraksts

Part number	TOU12
EAN
Unit	Each
Connection no 1 thread type	UNF
FConnection no 1 thread diameter	3/4 Inch
Connection 2, thread type	UNF
FConnection 2, thread diameter	3/4 Inch
Connection 3, thread type	UNF
Shape	Tee (T) - 3 connections
Connection no 1 type	Thread
CH1Connection no 1 wrench size	19.0 mm
Connection 2, type	Thread
Connection 3, type	Thread
FConnection 3, thread diameter	3/4 Inch
CH2Connection 3, wrench size	25.0 mm
L2Connection no 1 center to end distance	35.2 mm
L1Connection centre to insert distance	34 mm
D1Pipe diameter	1/2 Inch
Pipe diameter	12 mm
Material	Steel
Surface treatment	Galvanised
Working pressure	340 BAR
